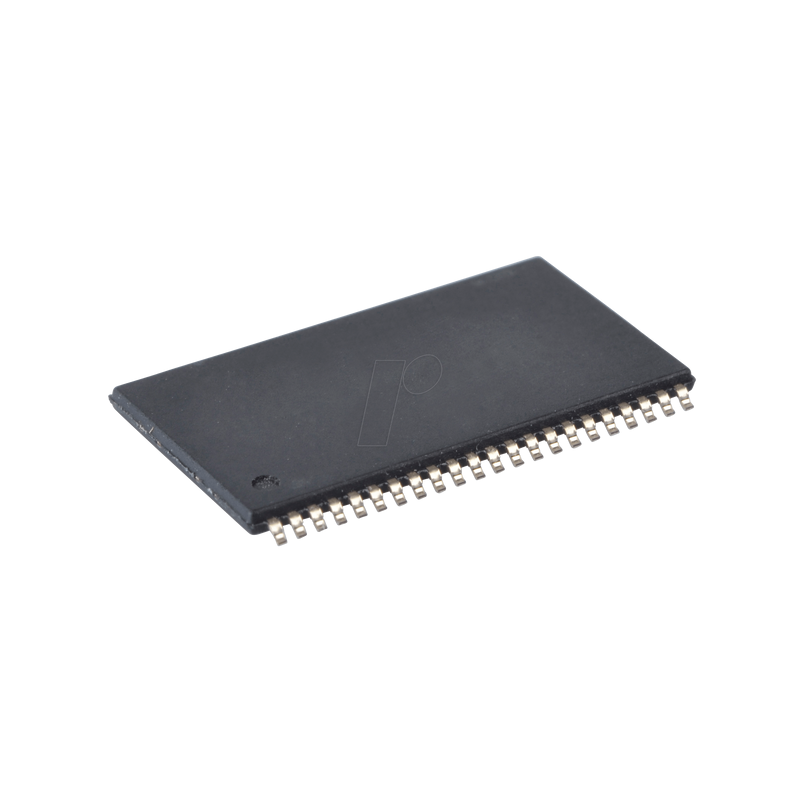

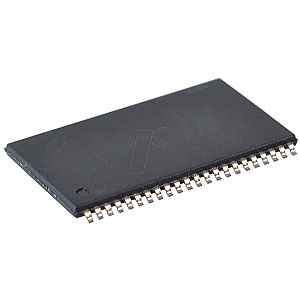

High-speed SRAM, 4 Mb (512 K x 8), 3.3 V, 10ns, TSOP-44

High-Speed CMOS Static RAM 3,3V 512kx8 10ns TSOP44(II)

Description:
The ISSI IS61WV5128Bxx are very high-speed, low power, 524,288-word by 8-bit CMOS static RAMs. The IS61/64WV5128Bxx are fabricated using ISSI's highperformance CMOS technology. This highly reliable process coupled with innovative circuit design techniques, yields higher performance and low power consumption devices. When CE is HIGH (deselected), the device assumes a standby mode at which the power dissipation can be reduced down with CMOS input levels. The IS61/64WV5128Bxx operate from a single power supply. The IS61/64WV5128BLL are available in 36-pin 400-mil SOJ and 44-pin TSOP (Type II) packages.

Features:
- High-speed access time: 10 ns
- Low Active Power: 85 mW (typical)
- Low Standby Power: 7 mW (typical) CMOS standby
- Single power supply Vdd 2.4V to 3.6V
- Fully static operation: no clock or refresh required
- Three state outputs
- Industrial and Automotive temperature support
- Lead-free available
