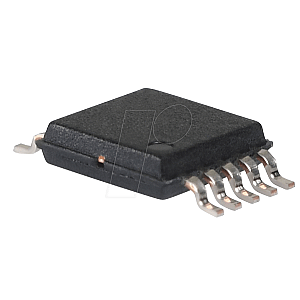

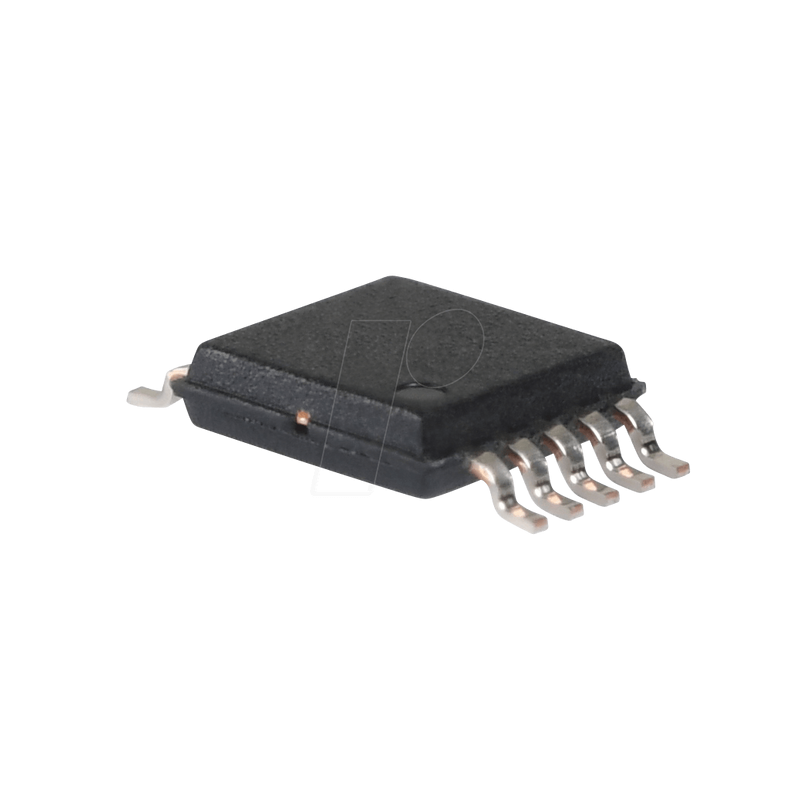

Programmable waveform generator, 0-12.5MHz, MSOP-10

AD 9833
The AD 9833 is a digital synthesizer with a 10-bit D/A converter, capable of producing sine, triangular and square wave outputs.
The output frequency and phase are programmable via software, allowing easy tuning.

Features
- Digitally programmable frequency and phase
- 12.65 mW power consumption at 3 V
- 0 MHz to 12.5 MHz output frequency range
- 28-bit resolution: 0.1 Hz at 25 MHz reference clock
- Sinusoidal, triangular, and square wave outputs
- 2.3 V to 5.5 V power supply
- No external components required
- 3-wire SPI interface
- Extended temperature range: -40°C to +105°C
- Power-down option
- Qualified for automotive applications

Applications
- Signal generation
- Liquid and gas flow measurement
- Sensory applications: proximity, motion and defect detection
- Line loss/attenuation
- Testing and medical devices
- Sweep/clock generators

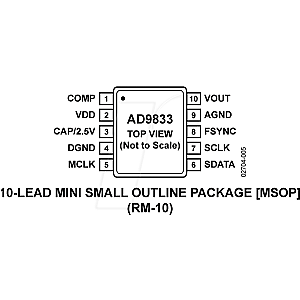

Housing: MSOP-10
