The AD5932 is a waveform generator offering a programmable frequency scan. Utilizing embedded digital processing that allows enhanced frequency control, the device generates synthesized analog or digital frequency-stepped waveforms. Because frequency profiles are preprogrammed, continuous write cycles are eliminated, thereby freeing up valuable DSP/microcontroller resources. Waveforms start from a known phase and are incremented phase-continuously, which allows phase shifts to be easily determined. Consuming only 6.7 mA, the AD5932 provides a convenient low power solution to waveform generation.

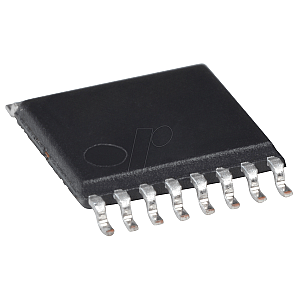

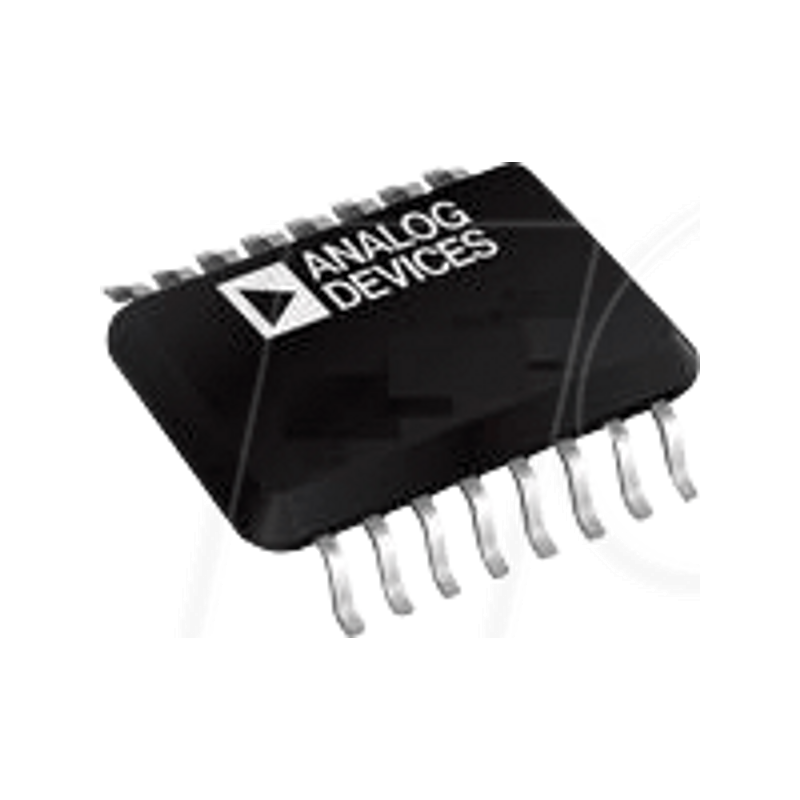

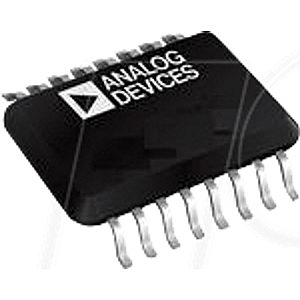

Programmable waveform generator, 25 MHz, TSSOP-16
€15.87AD 5932 YRUZ
Technical information
| General | |
|---|---|
| Model | Signal generator |
| Type | Programmable |
| Design | Frequenzscan |
| Mounting form | TSSOP-16 |
| Other | |
| Temperature range | -40 .. 125 |
| Electrical values | |
| Supply voltage | 2.3 - 5.5 VDC |
| Frequency | 25 MHz |
| Manufacturer specifications | |
| Manufacturer | ANALOG DEVICES |
| Manufacturer ID | AD5932YRUZ |
| Weight | 1.0E-4 kg |
| RoHS | conform |
| EAN/GTIN | 9900001853821 |
| HS-Code | 85423990 |
