128k x 8-bit low-power CMOS SRAM, SRAM, 5 V, 128k x 8, 55 ns, DIP32
The AS6C1008 is a 1,048,576-bit low-power CMOS static random access memory organised as 131,072 words by 8 bits. It is fabricated using very high-performance, high-reliability CMOS technology. Its standby current is stable within the operating temperature range. The AS6C1008 is well designed for very low-power system applications and particularly well suited for battery-backed non-volatile memory applications. The AS6C1008 operates from a single power supply of 2.7 V ~ 5.5 V.

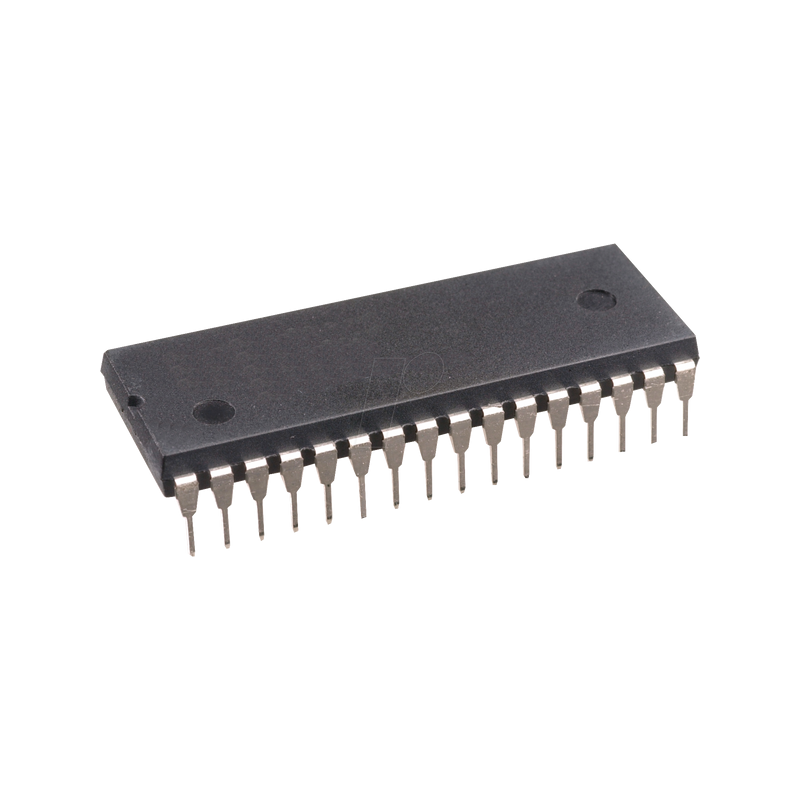

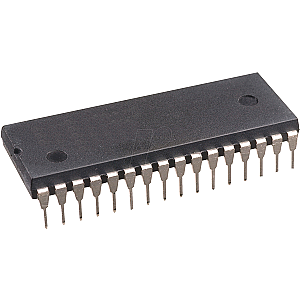

SRAM, 1 Mb (128 K x 8), 5 V, 55ns, DIL-32
€6.72AS 6C1008-55PCN
Technical information
| General | |
|---|---|
| Model | SRAM |
| Type | Low-Power |
| Design | asynchron |
| Memory | 1 Mb (128kx8) |
| Mounting form | DIP-32 |
| Electrical values | |
| Access time | 55 ns |
| Supply voltage | 2.7 ... 5.5 VDC |
| Other | |
| Temperature range | 0 ... +70 |
| Implementation | |
| Word Size | 8 bit |
| Manufacturer specifications | |
| Manufacturer | ALLIANCE |
| Manufacturer ID | AS6C1008-55PCN |
| Weight | 0.006 kg |
| RoHS | conform |
| EAN/GTIN | 9900001465529 |
| HS-Code | 85423245 |
