512Kx8 high-speed CMOS static RAM, SRAM, 3.3-V 10-ns SOJ36
The ISSI IS61LV5128AL is a very high-speed, low power, 524,288-word by 8-bit CMOS static RAM. The IS61LV5128AL is fabricated using ISSI high-performance CMOS technology. This highly reliable process coupled with innovative circuit design techniques, yields higher performance and low power consumption devices. When CE is HIGH (deselected), the device assumes a standby mode at which the power dissipation can be reduced down to 250 µW (typical) with CMOS input levels. The IS61LV5128AL operates from a single 3.3 V power supply and all inputs are TTL-compatible. The IS61LV5128AL is available in 36-pin 400-mil SOJ, 36- pin mini BGA and 44-pin TSOP (type II) packages

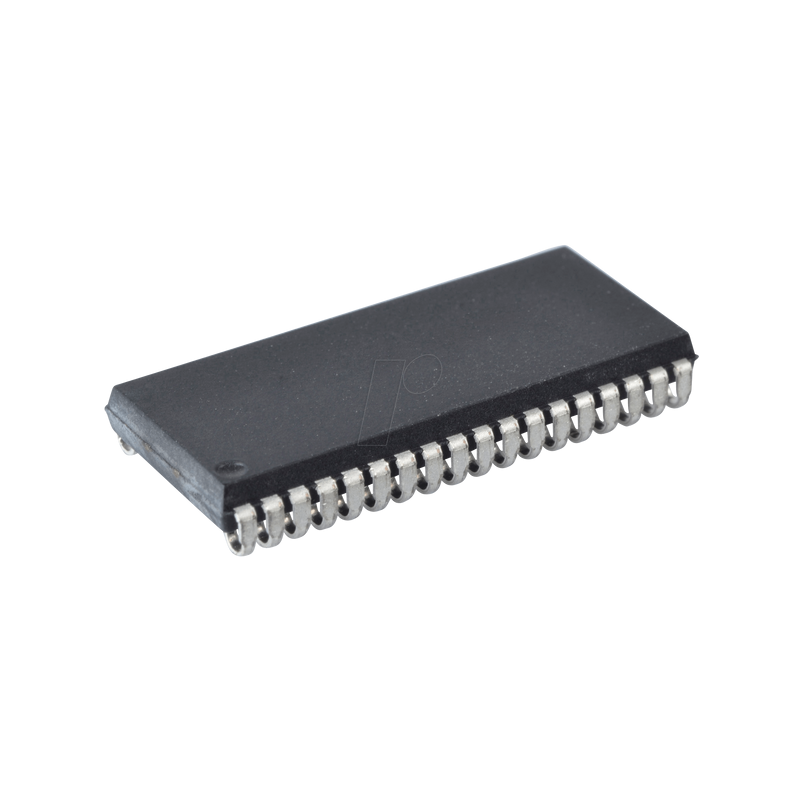

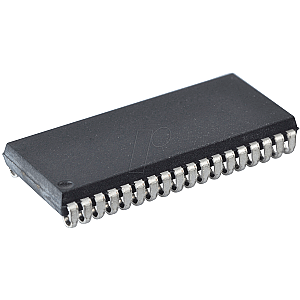

SRAM, 4 Mb (512 K x 8), 3.135 ... 3.6 V, SO-36J
€11.73IS61LV5128AL10KL
Technical information
| General | |
|---|---|
| Model | SRAM |
| Type | High Speed |
| Design | asynchron |
| Memory | 4 Mb (512kx8) |
| Mounting form | SO-36 |
| Electrical values | |
| Access time | 10 ns |
| Supply voltage | 3.3 VDC |
| Other | |
| Temperature range | 0 ... +70 |
| Implementation | |
| Word Size | 8 bit |
| Manufacturer specifications | |
| Manufacturer | ISSI |
| Manufacturer ID | IS61LV5128AL-10KLI |
| Weight | 0.001 kg |
| RoHS | conform |
| EAN/GTIN | 9900001465635 |
| HS-Code | 85423245 |
