512k x 8-bit low-power CMOS SRAM, SRAM, 5 V, 512k x 8, 55 ns, DIP32
The AS6C4008 is a 4,194,304-bit low-power CMOS static random access memory organised as 524,288 words by 8 bits. It is fabricated using very high-performance, high-reliability CMOS technology. Its standby current is stable within the operating temperature range.
The AS6C4008 is well designed for very low-power system applications and particularly well suited for battery-backed non-volatile memory applications.
The AS6C4008 operates from a single power supply of 2.7 V ~ 5.5 V and all inputs and outputs are fully TTL compatible
In stock
SKU AS 6C4008-55PCN

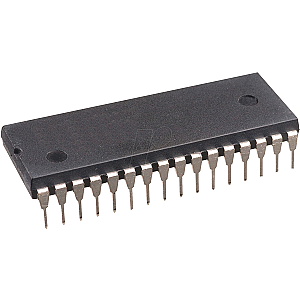

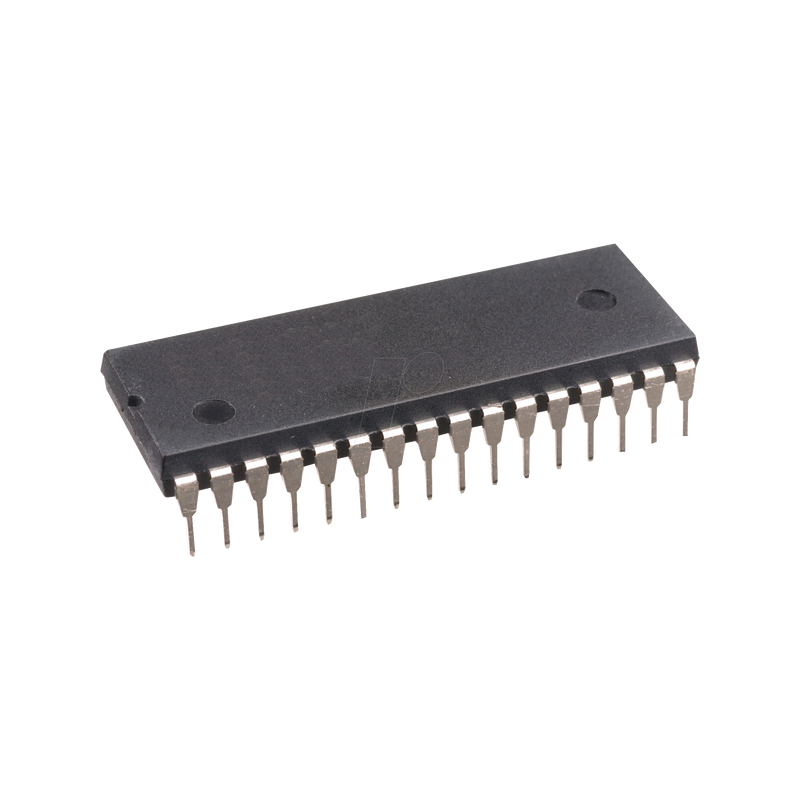

SRAM, 4 Mb (512 K x 8), 5 V, 55ns, DIL-32
MPN AS6C4008-55PCN
Manufacturer ALLIANCE
€9.78
incl. 19% VAT · €8.22 excl. VAT
Package
DIP-32
Specifications
General
Model
SRAM
Type
Low-Power
Design
asynchron
Memory
4 Mb (512kx8)
Mounting form
DIP-32
Electrical values
Access time
55 ns
Supply voltage
2.7 ... 5.5 VDC
Other
Temperature range
0 ... +70
Implementation
Word Size
8 bit
Manufacturer specifications
Manufacturer
ALLIANCE
Manufacturer ID
AS6C4008-55PCN
Weight
0.005 kg
RoHS
conform
EAN/GTIN
9900001465536
HS-Code
85423245
