The LM5022 is a high voltage low-side N-channel MOSFET controller ideal for use in boost and SEPIC regulators. It contains all of the features needed to implement single ended primary topologies. Output voltage regulation is basedon current-mode control, which eases the design of loop compensation while providing inherent input voltage feed-forward.

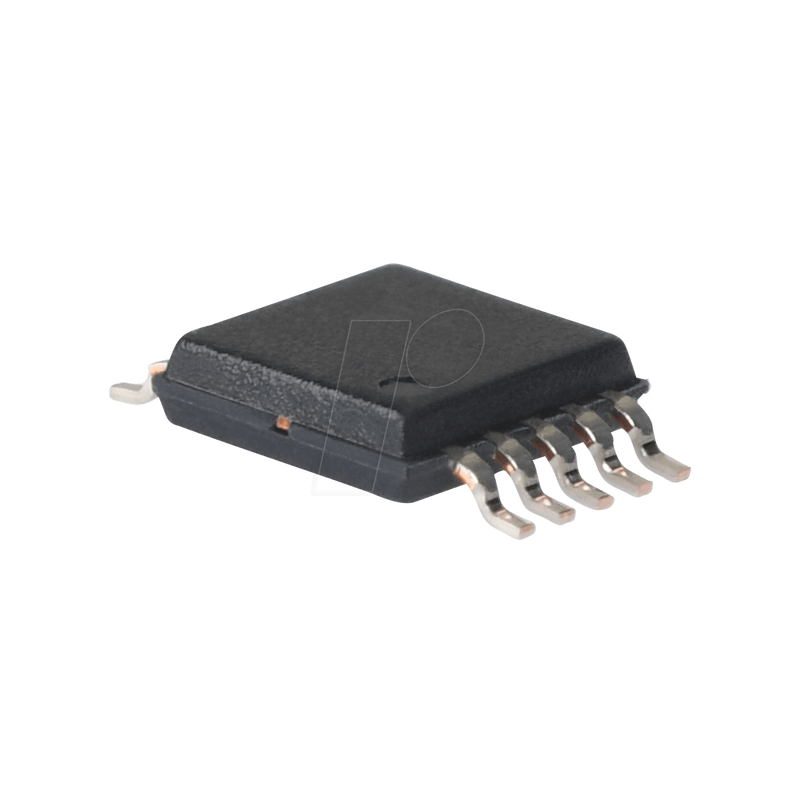

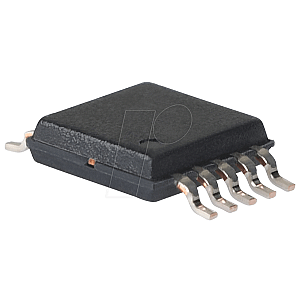

Step-up, adj., 6 ... 60 V, 1,25 ... 57 V, VSSOP-10
€6.09LM 5022 MM
Technical information
| General | |
|---|---|
| Type | Step-up converter |
| Model | Switching controller |
| Design | Controller |
| Mounting form | VSSOP-10 |
| Other | |
| Temperature range | -40 ... +125 |
| Electrical values | |
| Input voltage | 6 - 60 VDC |
| Switching frequency | 1115 kHz |
| Manufacturer specifications | |
| Manufacturer | TEXAS INSTRUMENTS |
| Manufacturer ID | LM5022MM/NOPB |
| Weight | 1.0E-4 kg |
| RoHS | conform |
| EAN/GTIN | 9900001877636 |
| HS-Code | 85423990 |
