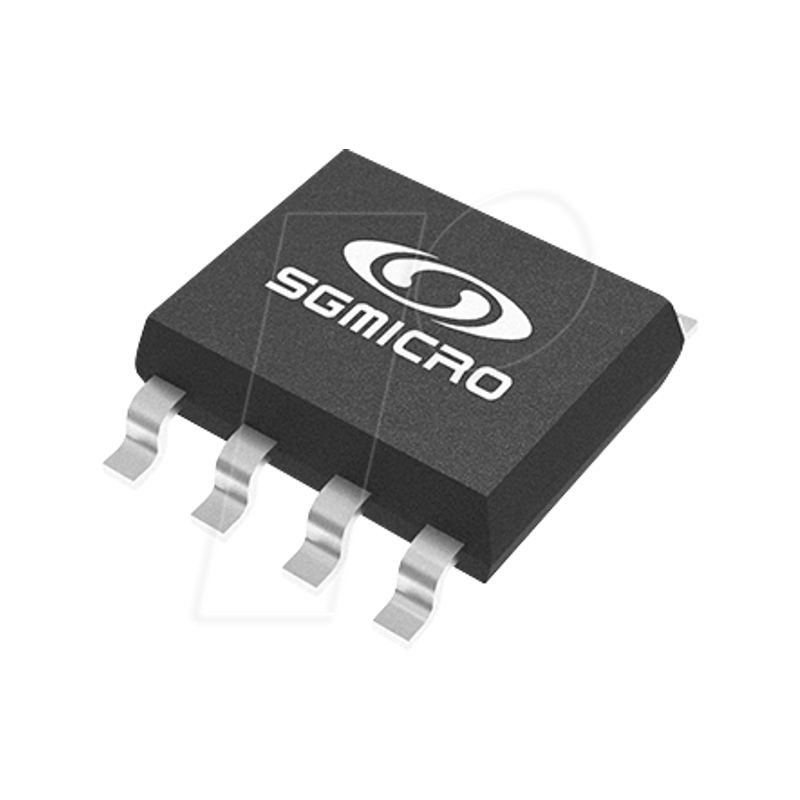

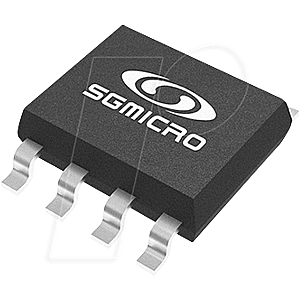

1-fold rail-to-rail precision OP, 3.6 - 36 V, 0.6 MHz, 0.3 V/µs,

Single Rail-to-Rail Precision-OP, 3,6 - 36V, 0,6MHz, 0,3V/µs, SO-8

Description:
The SGMOP07E is a low noise, low offset voltage and high voltage operational amplifier, which can be designed into a wide range of applications. The SGMOP07E has a high gain-bandwidth product of 600kHz, a slew rate of 3V/µs and a quiescent current of 0.75mA at wide power supply range. The SGMOP07E is designed to provide optimal performance in low noise systems. It provides rail-to-rail output swing into heavy loads.
The single SGMOP07E is available in Green SOIC-8 package. It is specified over the extended -40° to +125° temperature range.

Features:
- Rail-to-Rail Output
- Low Bias Current: ±1nA (TYP)
- High Open-Loop Gain: 130dB at VS = ±15V
- High PSRR: 135dB
- Gain-Bandwidth Product: 600kHz
- Low Noise: 8.5nV/Hz at 1kHz
- Supply Voltage Range: 3.6V to 36V or ±1.8V to ±18V
- Input Common Mode Voltage Range: (-VS) + 1.5V to (+VS) - 2V
- Low Quiescent Current: 0.75mA (TYP)
- -40? to +125? Operating Temperature Range
- Available in Green SOIC-8 Package

Applications:
- Sensors
- Audio
- Active Filters
- A/D Converters
- Communications
- Test Equipment
- Cellular and Cordless Phones
- Laptops and PDAs
- Photodiode Amplification
