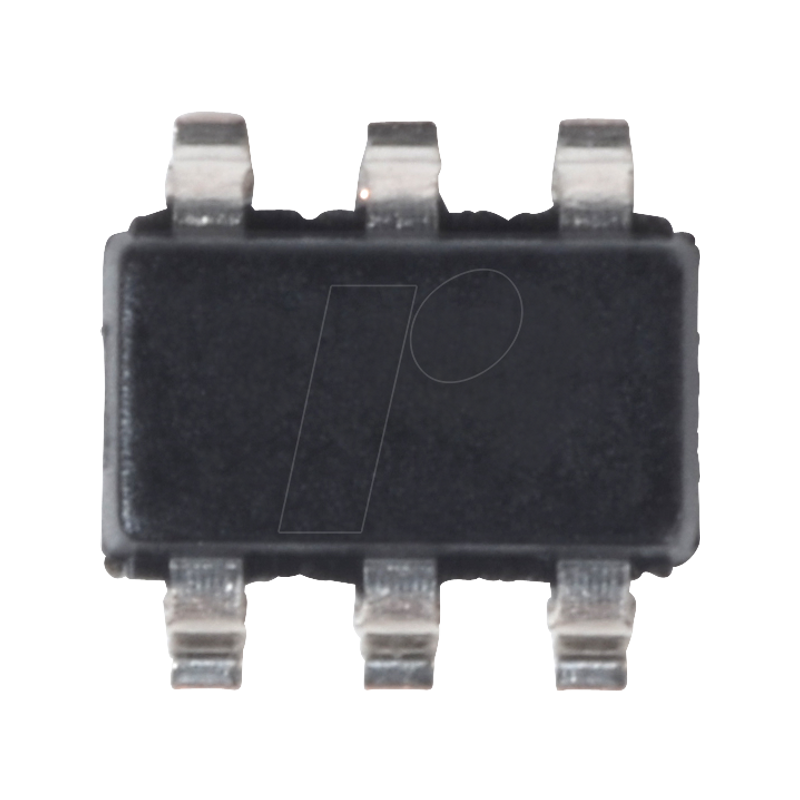

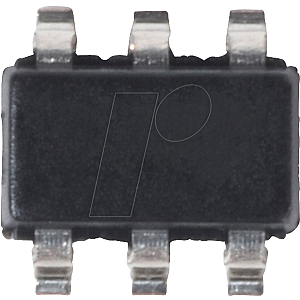

10-bit DA converter, serial, 2.7... +5.5 V, I2C, SOT-23-6

10-Bit Voltage Output Digital-to-Analog Converter with EEPROM and I2C™ Interface

Description:
The MCP4716 is single channel 10-bit buffered voltage output Digital-to- Analog Converters (DAC) with nonvolatile memory and an I2C serial interface. The VREF pin or the device VDD can be selected as the DAC’s reference voltage. When VDD is selected, VDD is connected internally to the DAC reference circuit. When the VREF pin is used, the user can select the output buffer’s gain to 1 or 2. When the gain is 2, the VREF pin voltage should be limited to a maximum of VDD/2. The DAC register value and Configuration bits can be programmed to nonvolatile memory (EEPROM). The nonvolatile memory holds the DAC register and Configuration bit values when the device is powered off.
A device Reset (such as a Power-on Reset) latches these stored values into the volatile memory. Power-Down modes enable system current reduction when the DAC output voltage is not required. The VOUT pin can be configured to present a low, medium, or high resistance load. These devices have a two-wire I2C™ compatible serial interface for standard (100 kHz), fast (400 kHz), or High-Speed (3.4 MHz) mode.

Features:
- Output Voltage Resolutions: 10-bit
- Rail-to-Rail Output
- Fast Settling Time of 6 µs (typical)
- DAC Voltage Reference Options:
- VDD
- VREF Pin
- Output Gain Options:
- Unity (1x)
- 2x, only when VREF pin is used as voltage source
- Nonvolatile Memory (EEPROM):
- Auto Recall of Saved DAC register setting
- Auto Recall of Saved Device Configuration (Voltage Reference, Gain, Power-Down)
- Power-Down modes:
- Disconnects output buffer
- Selection of VOUT pull-down resistors (640 kO, 125 kO, or 1 kO)
- Low-Power Consumption:
- Normal Operation: 210 µA typical
- Power-Down Operation: 60 nA typical (PD1:PD0 = 11)
- Single-Supply Operation: 2.7V to 5.5V
- I2C™ Interface:
- Eight Available Addresses
- Standard (100 kbps), Fast (400 kbps), and High-Speed (3.4 Mbps) modes
- Small 6-lead SOT-23

Applications:
- Set Point or Offset Trimming
- Sensor Calibration
- Low-Power Portable Instrumentation
- PC Peripherals
- Data Acquisition Systems
- Motor Control
