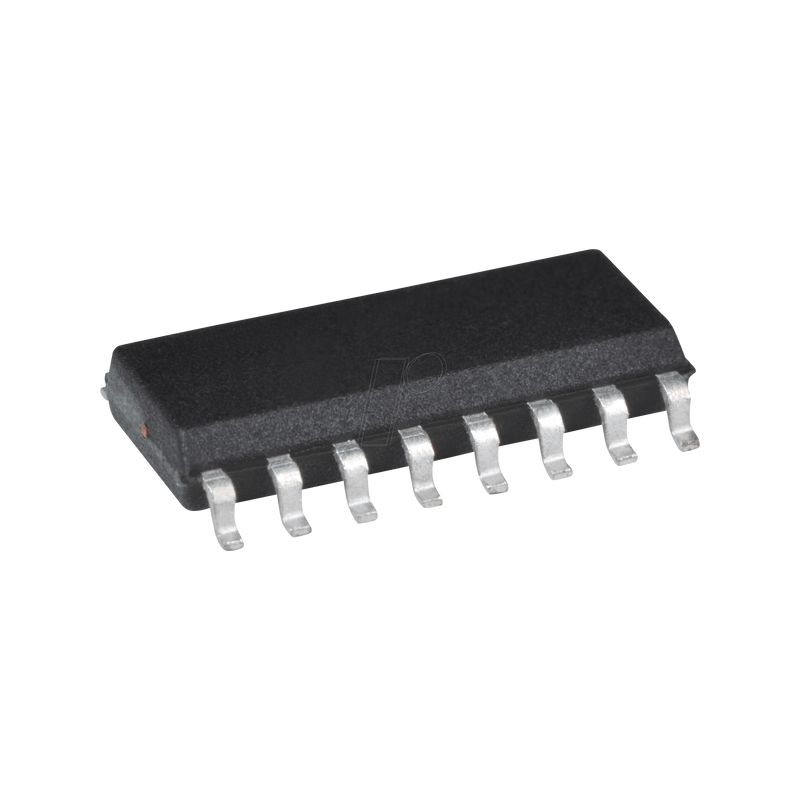

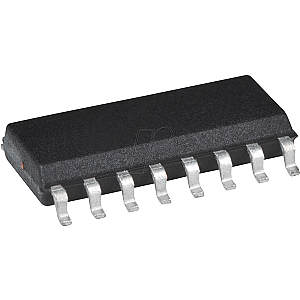

10-bit serial A/D converter, 8-channel, 2.7V, SPI, SO-16

MCP3008
2.7V 8-Channel 10-Bit A/D Converters with SPI™ Serial Interface

Description:
The Microchip Technology Inc. MCP3004/3008 devices are successive approximation 10-bit Analogto- Digital (A/D) converters with on-board sample and hold circuitry. The MCP3004 is programmable to provide two pseudo-differential input pairs or four single-ended inputs. The MCP3008 is programmable to provide four pseudo differential input pairs or eight single-ended inputs. Differential Nonlinearity (DNL) and Integral Nonlinearity (INL) are specified at ±1 LSB. Communication with the devices is accomplished using a simple serial interface compatible with the SPI protocol. The devices are capable of conversion rates of up to 200 ksps. The MCP3004/3008 devices operate over a broad voltage range (2.7V - 5.5V). Low-current design permits operation with typical standby currents of only 5 nA and typical active currents of 320 µA. The MCP3004 is offered in 14-pin PDIP, 150 mil SOIC and TSSOP packages, while the MCP3008 is offered in 16- pin PDIP and SOIC packages.

Features:
- 10-bit resolution
- ±1 LSB max DNL
- ±1 LSB max INL
- 8 (MCP3008) input channels
- Analog inputs programmable as single-ended or pseudo-differential pairs
- On-chip sample and hold
- SPI™ serial interface (modes 0,0 and 1,1)
- Single supply operation: 2.7V - 5.5V
- 200 ksps sampling rate at 5V
- 75 ksps sampling rate at 2.7V
- Low power CMOS technology:
- 5 nA typical standby current, 2 µA max
- 500 µA max active current at 5V
- Industrial temp range: -40°C to +85°C
- PDIP, SOIC and TSSOP packages

Applications:
- Sensor Interface
- Process Control
- Data Acquisition
- Battery Operated Systems
