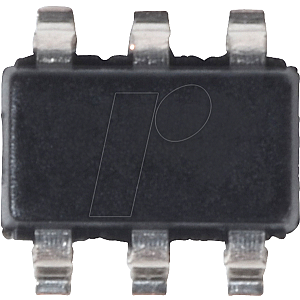

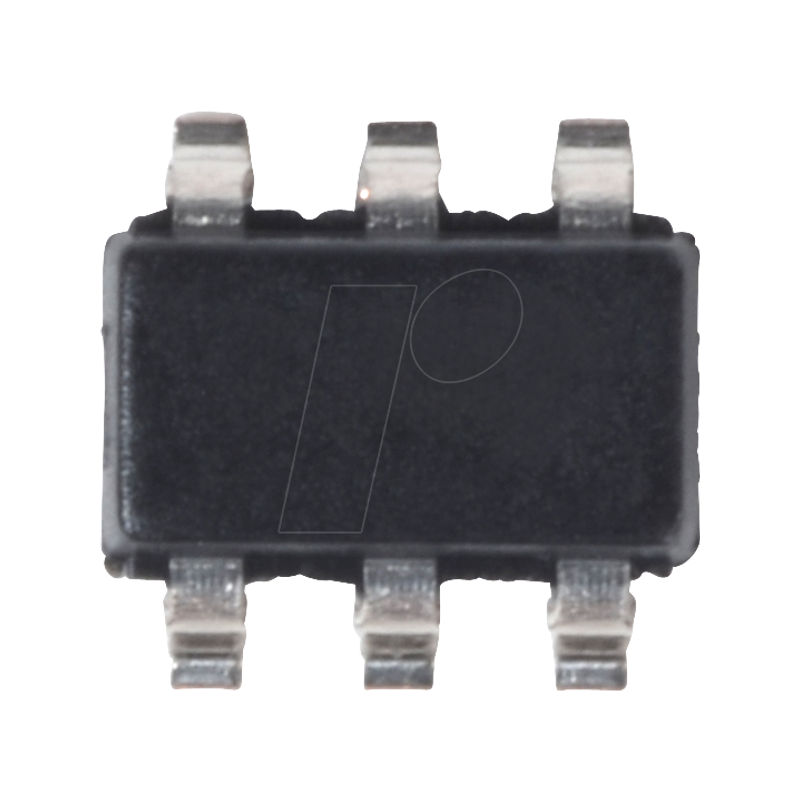

12-bit DA converter, 2.7 ... 5.5 V, I2C, SOT-23-6

12-Bit Voltage Output Digital-to-Analog Converter with EEPROM and I2C Interface

Description:
MCP4726 is a single channel, 12-bit, voltage output Digital-to-Analog Converter with integrated EEPROM and an I2C Compatible Serial Interface.
The MCP47X6 DAC family offers integrated non-volatile memory (EEPROM) which allows DAC register and configuration bit values to be saves at powered off. The VREF pin or the device VDD can be selected as the DAC’s reference voltage. Power-Down modes enable system current reduction when the DAC output voltage is not required. These devices are available in small 6-pin SOT-23 and DFN 2x2 mm packages.

Features:
- Output Voltage Resolutions
- 12-bit: MCP4726
- Rail-to-Rail Output
- Fast Settling Time of 6 µs (typical)
- DAC Voltage Reference Options
- VDD
- VREF Pin
- Output Gain Options
- Unity (1x)
- 2x, only when VREF pin is used as voltage source
- Nonvolatile Memory (EEPROM)
- Auto Recall of Saved DAC register setting
- Auto Recall of Saved Device Configuration (Voltage Reference, Gain, Power Down)
- Power-Down Modes
- Disconnects output buffer
- Selection of VOUT pull-down resistors (640 kO, 125 kO, or 1 kO)
- Low Power Consumption
- Normal Operation: 210 µA typ.
- Power Down Operation: 60 nA typ. (PD1:PD0 = “11")
- Single-Supply Operation: 2.7V to 5.5V
- I2C™ Interface:
- Eight Available Addresses
- Standard (100 kbps), Fast (400 kbps), and High-Speed (3.4 Mbps) Modes
- Small 6-lead SOT-23 and DFN (2x2) Packages
- Extended Temperature Range: -40°C to +125°C

Applications:
- Set Point or Offset Trimming
- Sensor Calibration
- Low Power Portable Instrumentation
- PC Peripherals
- Data AcquisitionSystems
- Motor Control
