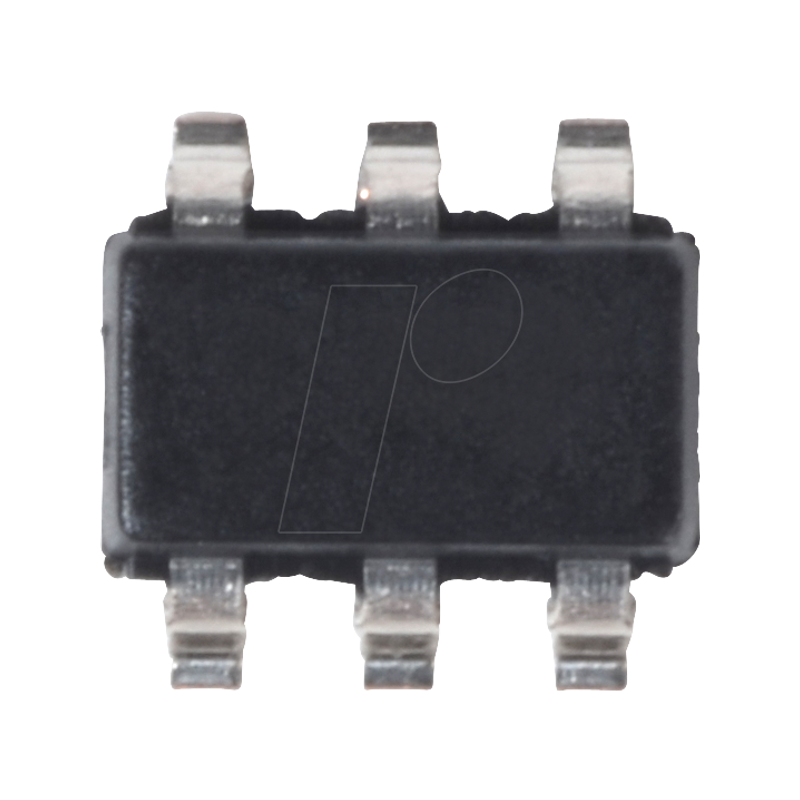

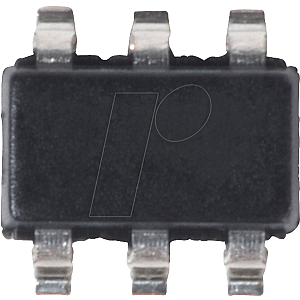

12-bit digital-to-analog converter, with EEPROM, SOT-23-6

Properties

- 12-bit resolution
- Non-volatile on-board memory (EEPROM)
- ±0.2 LSB DNL (typical)
- External A0 address Pin
- Normal or Power-Down Mode
- Fast settling time: 6 µs (typical)
- External voltage setpoint (VDD)
- Rail-to-Rail output
- Low power consumption
- Single supply operation: 2.7V to 5.5V
- I2CTM interface:
- Eight available addresses
- Standard (100 kbps), Fast (400 kbps) and High Speed (3.4 Mbps) modes
- Small 6-pin SOT-23 package
- Extended temperature range: -40°C to +125°C

Applications

- Setpoint or offset trim
- Calibration of the sensors
- Closed servo control
- Portable instruments with low power
- PC peripherals
- Data acquisition systems
