The AD7719 is a complete analog front end for low frequency measurement applications. It contains two high resolution S-? ADCs, switchable matched excitation current sources, low-side power switches, digital I/O port, and temperature sensor. The 24-bit main channel with PGA accepts fully differential, unipolar, and bipolar input signal ranges from 1.024 × REFIN1/128 to 1.024 × REFIN1. Signals can be converted directly from a trans- ducer without the need for signal conditioning. The 16-bit auxiliary channel has an input signal range of REFIN2 or REFIN2/2.

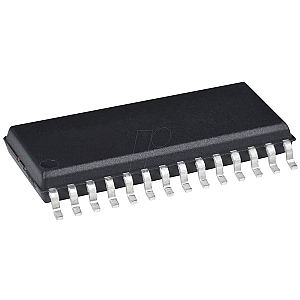

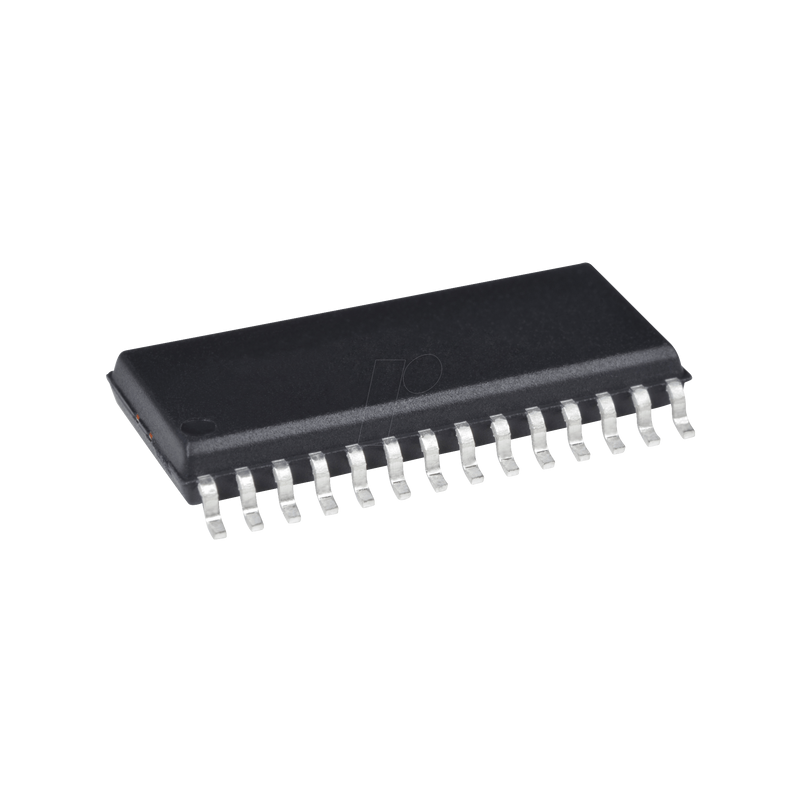

16-/24-Bit, Dual Sigma Delta ADC
€40.48AD 7719 BRZ
Technical information
| General | |
|---|---|
| Model | A/D-converter |
| Resolution | 24-Bit |
| Design | 2-channel |
| Mounting form | SOIC-28 |
| Manufacturer specifications | |
| Manufacturer | ANALOG DEVICES |
| Manufacturer ID | AD7719BRZ |
| Weight | 1.0E-4 kg |
| RoHS | conform |
| EAN/GTIN | 9900001854040 |
| HS-Code | 85423990 |
