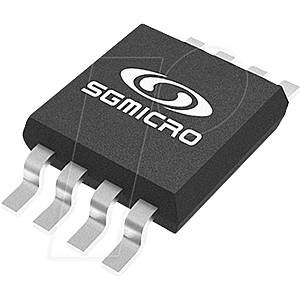

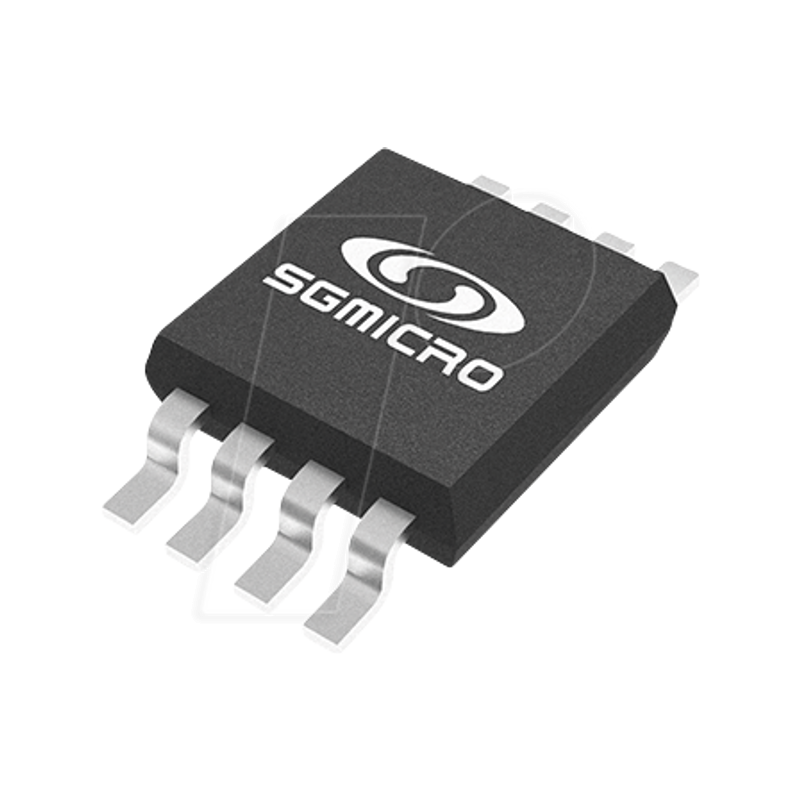

2-fold operational amplifier, 3.0 - 32V, 1.1MHz, 0.35 V/µs, SO-8

LM358 , Dual Operational Amplifier

Description:
The LM358 consists of two independent, high-gain frequency-compensated operational amplifiers designed to operate from a single supply or dual supplies over a wide range of voltages. The LM358 is available in a Green SOIC-08 package. It is specified over the 0° to +70° temperature range.

Features:
- Wide Supply Ranges
- Single Supply: 3V to 32V
- Dual Supplies: ±1.5V to ±16V
- Low Quiescent Current: 440µA (TYP)
- Gain-Bandwidth Product: 1.1MHz
- Input Common Mode Voltage Range Includes Ground, Allowing Direct Sensing Near Ground
- Low Input Offset Voltage: 5.8mV (MAX)
- Low Input Offset Current: 20pA (TYP)
- Low Input Bias Current: 10pA (TYP)
- Differential Input Voltage Range Equal to Maximum- Rated Supply Voltage: 32V
- Open-Loop Differential Voltage Gain: 111dB (TYP)
- Internal Frequency Compensation
- 0° to +70° Operating Temperature Range
- Available in a Green SO-8 Package

Applications:
- Blu-ray Players and Home Theaters
- Chemical and Gas Sensors
- DVD Recorders and Players
- Digital Multimeter: Bench and Systems
- Digital Multimeter: Handhelds
- Field Transmitter: Temperature Sensors
- Motor Control: AC Induction, Brushed DC, Brushless DC, High-Voltage, Low-Voltage, Permanent Magnet, and Stepper Motors
- Oscilloscopes
- TV: LCD and Digital
- Temperature Sensors or Controllers Using Modbus
- Weigh Scales
