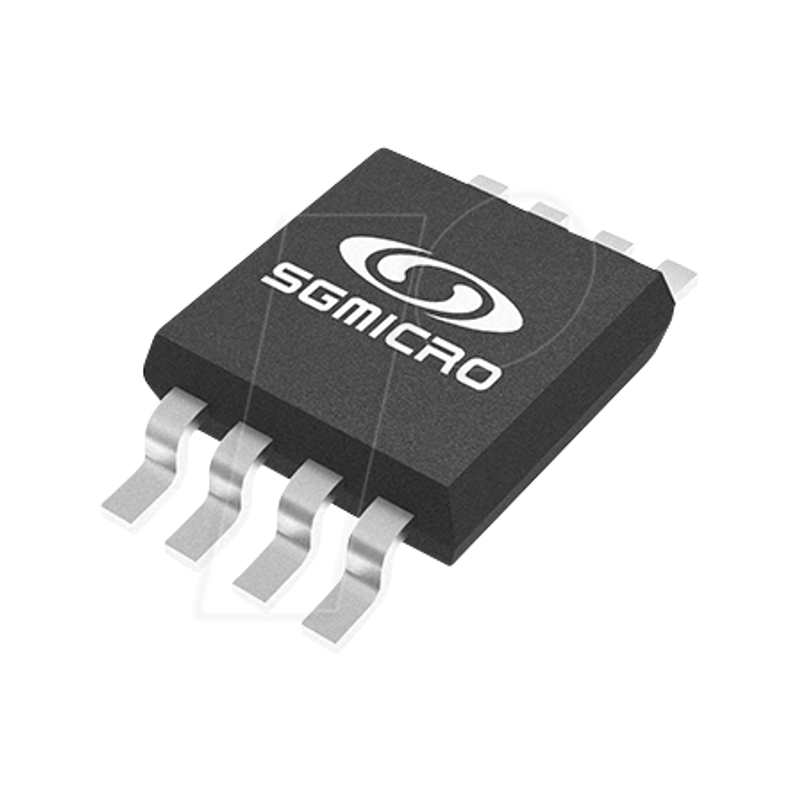

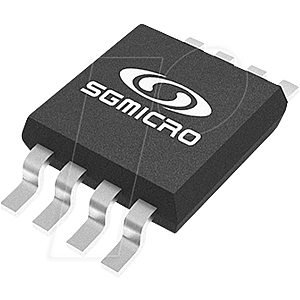

2-fold rail-to-rail OP, 4 - 5.5 V, 12 KHz, 0.0038 V/µs, SO-8

Dual Rail-to-Rail-OP, 4 - 5,5V, 12KHz, 3800V/µs, SO-8

DESCRIPTION
The SGM8042 is guaranteed to operate with a single supply voltage as low as 1.4V, while drawing less than 670nA (TYP) of quiescent current per amplifier. This device is also designed to support rail-to-rail input and output operation. This combination of features supports battery-powered and portable applications.
The SGM8042 has a gain-bandwidth product of 14.5kHz (TYP) and is unity gain stable. These specifications make this operational amplifier appropriate for low frequency applications, such as battery current monitoring and sensor conditioning. The SGM8042 is offered in dual configuration. It is specified over the extended -40° to +85° temperature range. The SGM8042 is available in SOIC-8 and MSOP-8 packages.

FEATURES
- Low Quiescent Current: 670nA/Amplifier (TYP)
- Rail-to-Rail Input and Output
- Wide Supply Voltage Range: 1.4V to 5.5V
- Unity Gain Stable
- -40° to +85° Operating Temperature Range
- Available in Green SOIC-8 and MSOP-8 Packages

APPLICATIONS
- Toll Booth Tags
- Wearable Products
- Temperature Measurement
- Battery Powered System
