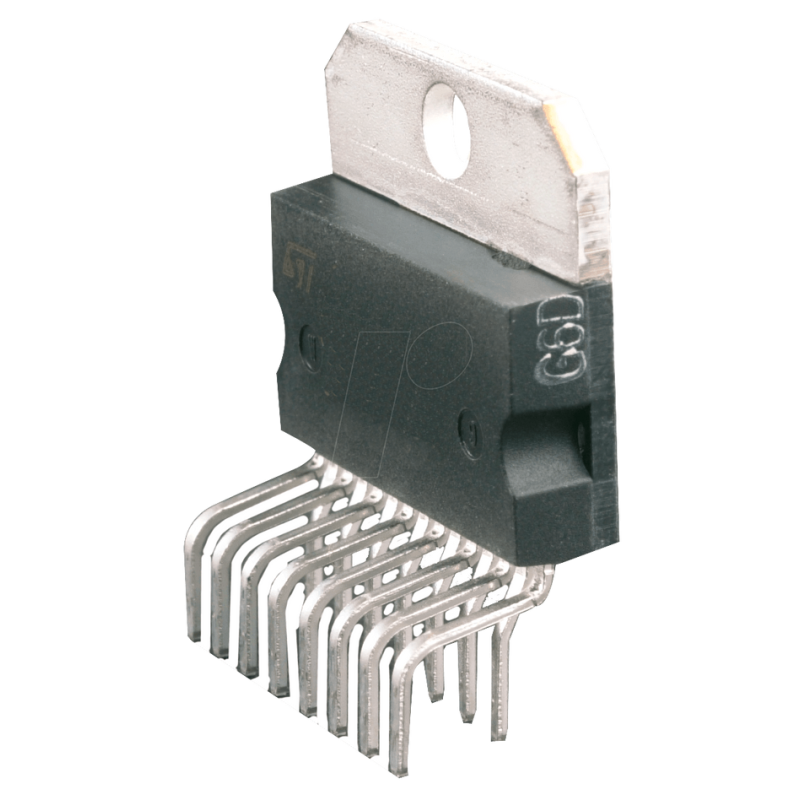

2 x 30W Dual/Quad Autoradio-Verstärker, Multiwatt-15V

2 x 30W Dual/Quad Power Amplifier for Car Radio

Features:
- High Output Power Capability:
- 2 x35Wmax./4O
- 2 x30W/4O EIAJ
- 2 x30W/4O EIAJ
- 2 x 20W/4O @14.4V, 1KHz, 10%
- 4 x 6W/4O @14.4V,1KHz, 10%
- 4 x 10W/2O @14.4V, 1KHz, 10%
- Minimum external Components Count:
- no bootstrap capacitor
- no boucherot cells
- internally fixed gain (26dB BTL)
- St-By function (CMOS compatible)
- no audible pop during St-By operations
- Diagnostics facility for:
- clipping
- out to GND short
- out to Vs short
- softshort at turn-on
- thermal shutdown proximity

Protections:
- output AC/DC short circuit
- to GND
- to Vs
- across the load
- soft short at turn-on
- overrating chip temperature with soft thermal limiter
- load dump voltage surge
- very inductive loads
- fortuitous open GND
- reversed battery
- ESD
