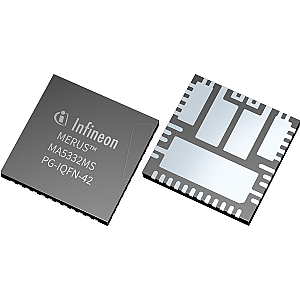

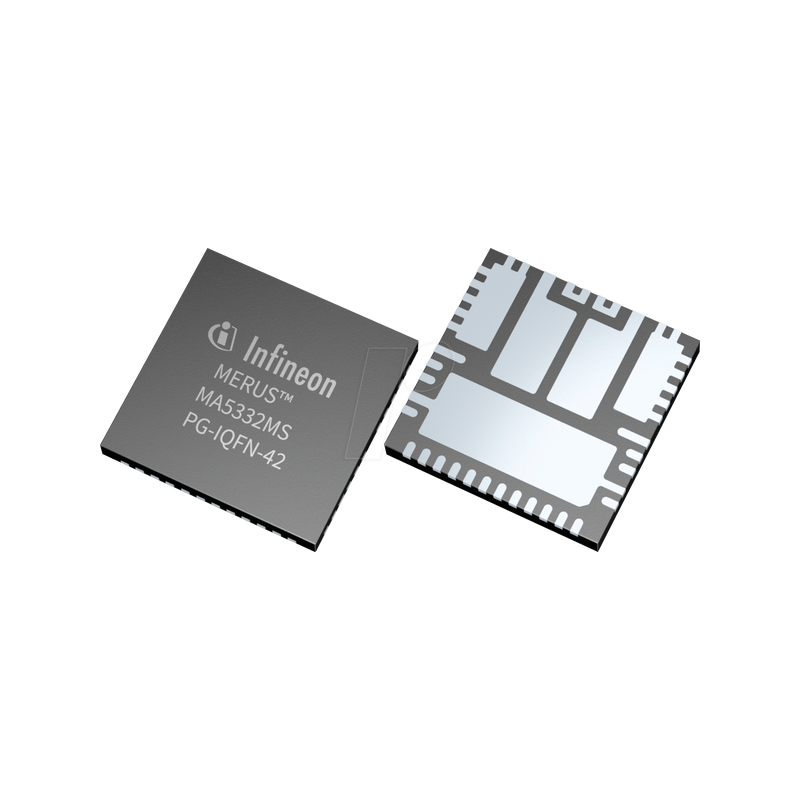

200 W stereo integrated Class D amplifier, 2-channel, QFN-42

MA5332MS , 200W Stereo, Integrated Class D Amplifier

Description
The MA5332MS offers the same or higher output power than monolithic alternatives without heatsink and 50% less footprint. This MCM (multi-chip module) solution integrates 2 channel PWM controller, high voltage gate driver, and 4 low RDS(ON) MOSFETs. Like its predecessor, IR43x2M, it includes standard Class D protection features for reliable operation over various environmental conditions. As a powerful upgrade to IR43x2M and other monolithic solutions, MA5332MS’ 7x7 mm PG- IQFN-42 package showcases the benefit of small footprint, high power density, and heatsink-less operation.

Features
- 2 channel analog input Class D audio amplifier in a small 7x7mm package
- Very low RDS(ON) at 24.4 mOhm typical, enabling heatsink-less operation at 2x100W at 4Ohm
- 95% efficiency Class D at 2x100W at 4Ohm
- Split or single power supply capable
- Differential or single-ended input
- Multiple configuration options: 2xSE, BTL, PSE (Parallel Single-Ended)
- Over-current, over-temperature and under-voltage protections with self-reset feature
- Start/stop click noise reduction
- Clip and Fault reporting outputs

Applications
- Multi-channel home theatre system
- Studio monitor
- Active speaker
- Soundbar subwoofer
- Marine amplifier
- Aftermarket car audio system
- General-purpose audio power amplifier
