Voltage regulator
Step Down
Output voltage 1.23-37 V.
Output current 3.3 A.
Housing TO-263-5
Input voltage 4-40 V.
Switching frequency -52 kHz

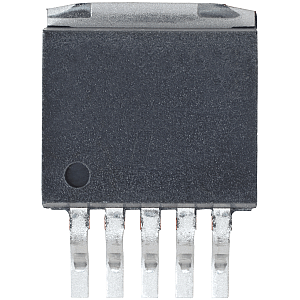

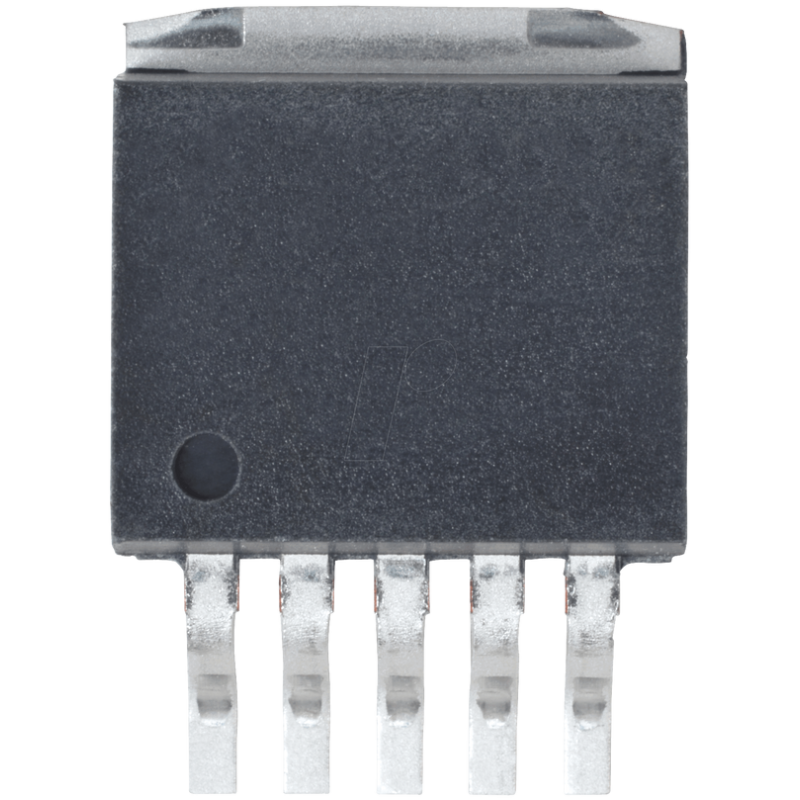

3-A Step-down voltage regulator, adj., 4 ... 40 V, 1,23 ... 37 V
€2.93LM2576D2T-ADJG
Technical information
| General | |
|---|---|
| Model | Switching controller |
| Type | Step-down converter |
| Design | Step-Down, einstellbar |
| Mounting form | TO-263-5 |
| Electrical values | |
| Input voltage | 4..40 VDC |
| Output voltage | 1.23-37 V DC |
| Switching frequency | 52 kHz |
| Supply voltage | Max. 45 VDC |
| IF(AV) | 3 A |
| Other | |
| Temperature range | -40...+125 |
| Manufacturer specifications | |
| Manufacturer | ONSEMI |
| Manufacturer ID | LM2576D2T-ADJG |
| Weight | 0.002 kg |
| RoHS | conform |
| EAN/GTIN | 9900003187719 |
| HS-Code | 85423990 |
