The L6235 is a fully integrated 3-phase DMOS-based DC motor driver (BLDC) with overcurrent protection. The chip was realized using MultiPower BCD technology and combines isolated DMOS power transistors with CMOS and bipolar circuits. The device provides a constant-off-cycle current controller and decoding logic for reference-related Hall-Effect sensors.
• Supply voltage of 8-52 V.
• 5.6 A peak current
• RDSon 0.3 ohms at 25°C.
• Up to 100 kHz switching frequency
• Constant-off-cycle current controller
• 60° and 120° Hall effect decoding logic
• Cross-line protection
• Brake function
• Tachometer output
• Thermal overload protection
• Integrated high-speed freewheeling diodes

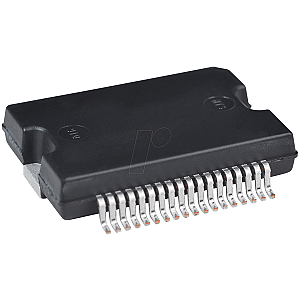

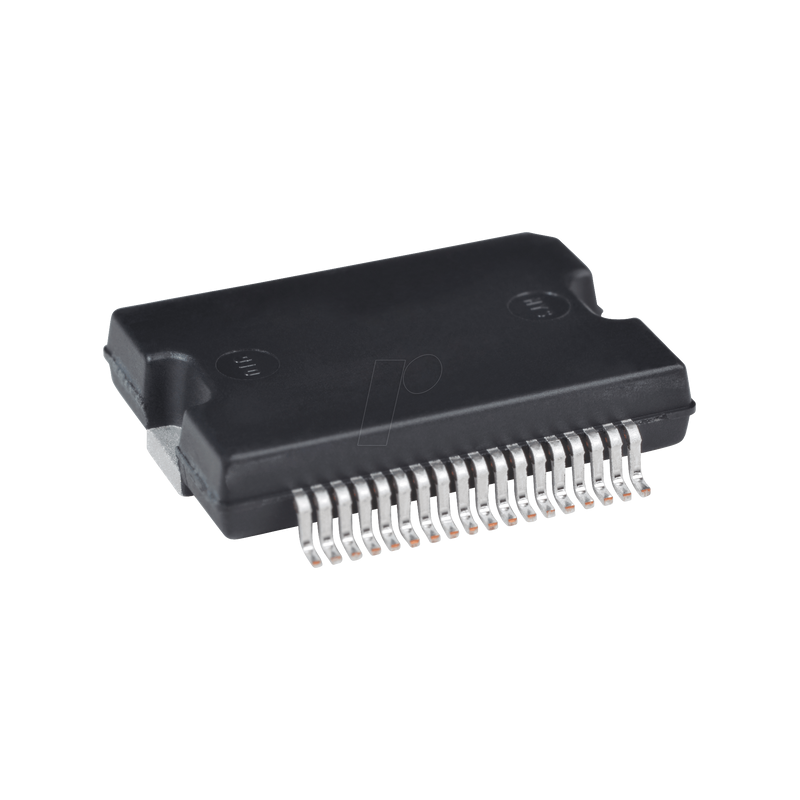

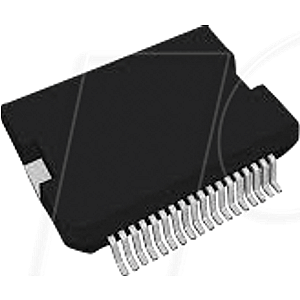

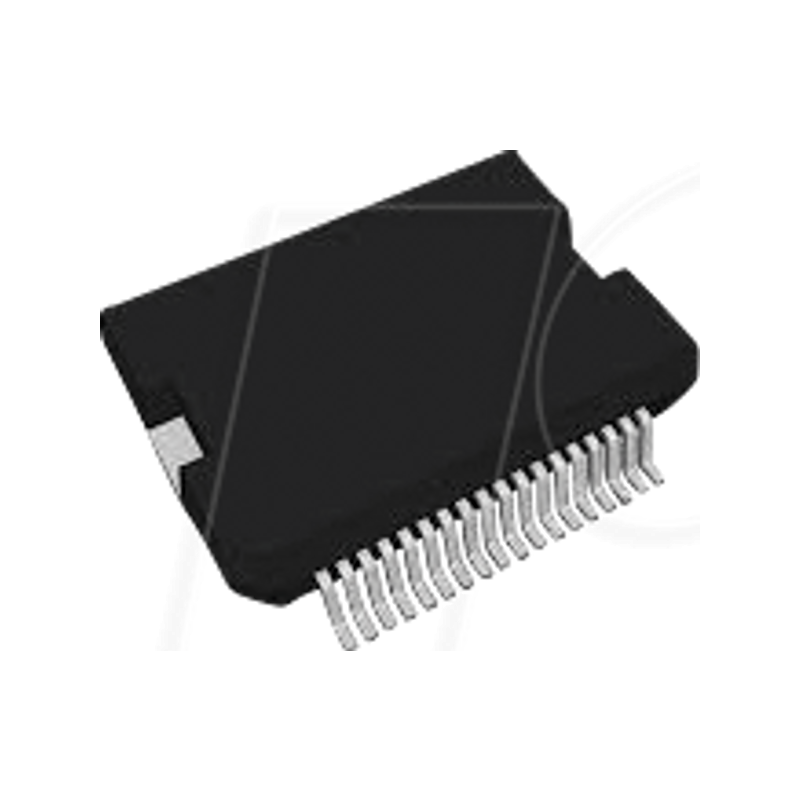

3-phase DMOS driver for BLDC motor, 12-52 V, 2.8 A, PowerSO-36
€6.78L6235PD
Technical information
| General | |
|---|---|
| Model | Driver |
| Type | Bridge driver |
| Design | BCD Technology |
| Mounting form | PowerSO-36 |
| Electrical values | |
| Supply voltage | 12 .. 52 VDC |
| Input voltage | -0.3 ... 7 VDC |
| Output voltage | 60 V DC |
| Output Current | 2.8 A |
| Other | |
| Temperature range | -40 .. +150 |
| Manufacturer specifications | |
| Manufacturer | STMICROELECTRONICS |
| Manufacturer ID | L6235PD |
| Weight | 1.0E-4 kg |
| RoHS | conform |
| EAN/GTIN | 9900002696731 |
| HS-Code | 85423990 |
