The L6229 is a fully integrated 3-phase DMOS full bridge rectifier with overcurrent protection. The chip was realized using MultiPower BCD technology and combines isolated DMOS power transistors with CMOS and bipolar circuits. This driver provides all the functions necessary to drive a brushless (BLDC) motor:
• Constant Off-Cycle PWM Controller
• Synchronous rectification with slow decay time
• 60° and 120° Hall effect decoding logic
• Brake function
• Tachometer output for Speedloop
• Cross-line protection
• Thermal overload protection
• Undervoltage protection
• Integrated high-speed freewheeling diodes
In stock
SKU L6229PD

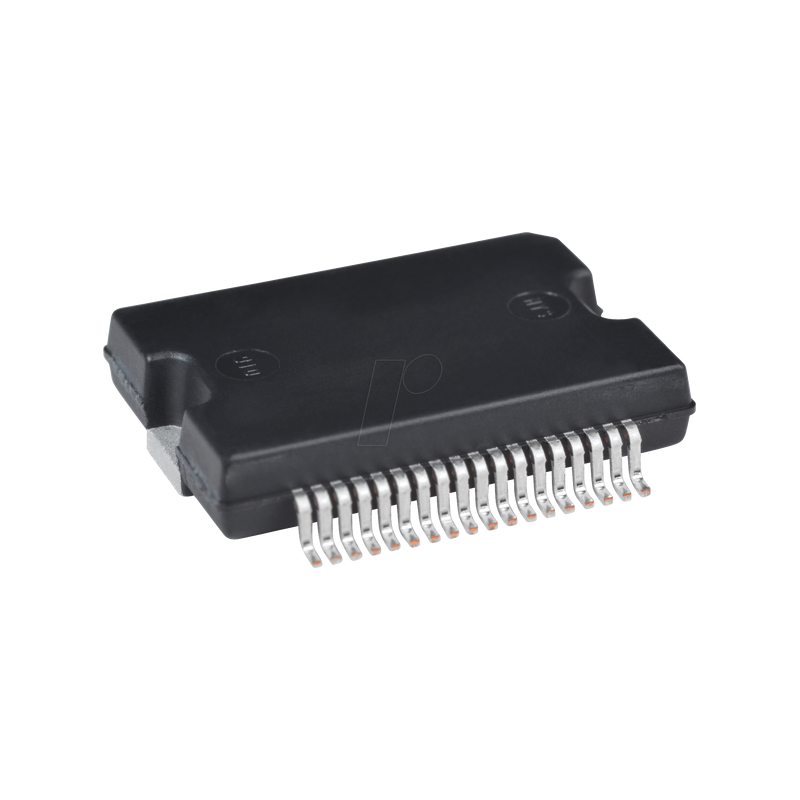

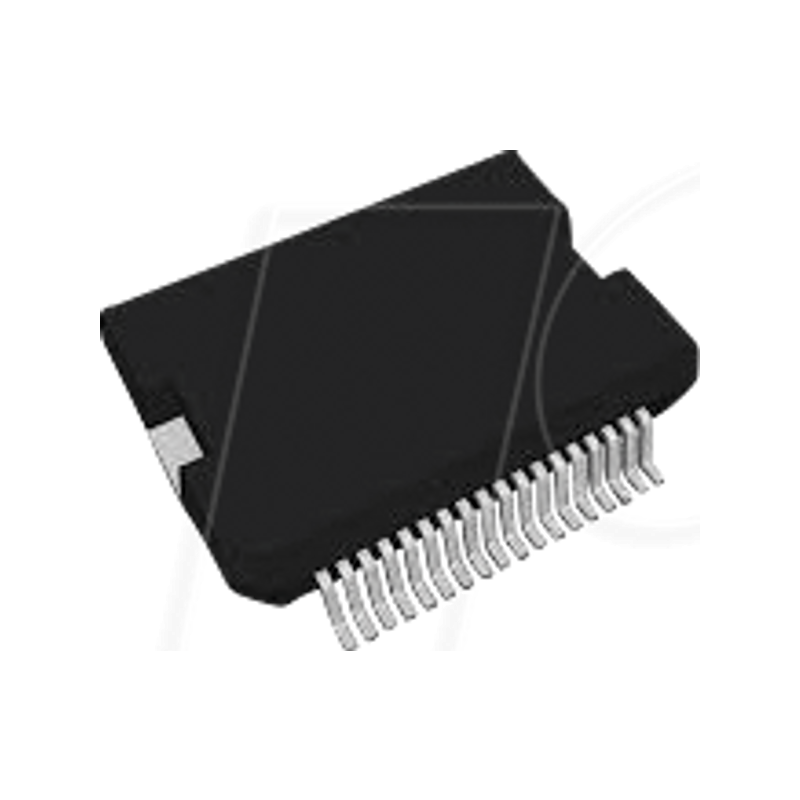

3-phase DMOS driver for BLDC motor, 8-52 V, 1.4 A, PowerSO-36
MPN L6229PDTR
Manufacturer STMICROELECTRONICS
€8.62
incl. 19% VAT · €7.24 excl. VAT
Package
PowerSO-36
Specifications
General
Model
Driver
Type
Bridge driver
Design
BCD Technology
Mounting form
PowerSO-36
Electrical values
Supply voltage
12 .. 52 VDC
Input voltage
-0.3 ... 7 VDC
Output voltage
60 V DC
Output Current
1.4 A
Other
Temperature range
-40 .. +150
Manufacturer specifications
Manufacturer
STMICROELECTRONICS
Manufacturer ID
L6229PDTR
Weight
1.0E-4 kg
RoHS
conform
EAN/GTIN
9900002696724
HS-Code
85423990
