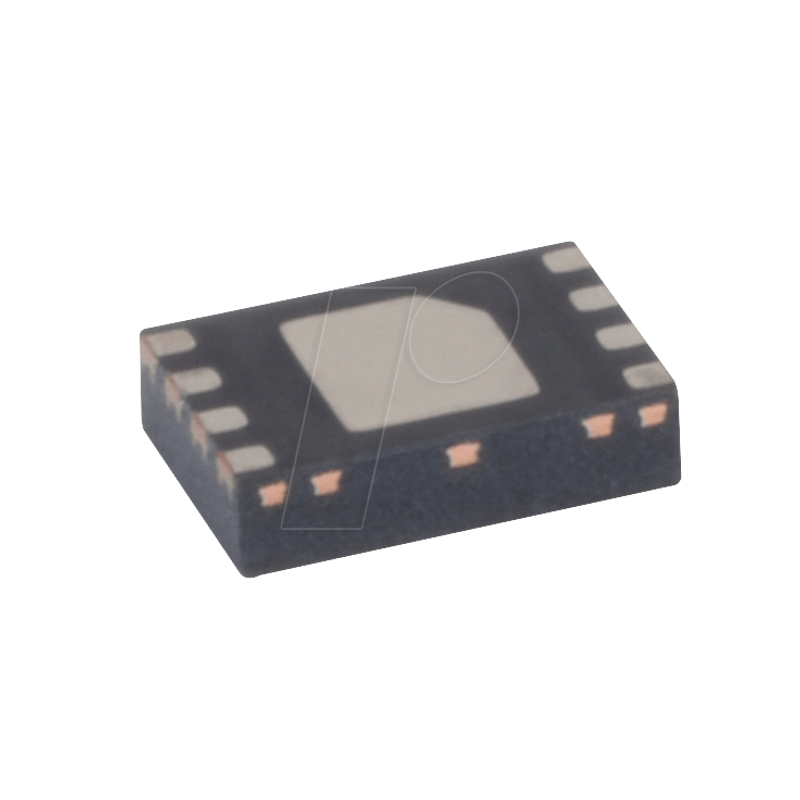

3-phase motor driver, 2 ... 14V, 1.5A, DFN-8

3-Phase Brushless Sinusoidal Sensorless Motor Driver

Description:
The MCP8063 is a highly integrated sinusoidal sensorless driver for brushless DC motors. It features 180° sinusoidal drive for high torque output and silent operation. It is intended to cover a wide range of motor characteristics, while requiring no external tuning from the user. Speed control can be achieved through either power supply or pulse-width-modulation (using the PWM digital input pin). The compact packaging and minimum bill-of-material (BOM), it is best suited for fan applications that require high efficiency and low acoustic noise. Frequency generator output is also included, enabling for precision speed control in closed-loop applications. The MCP8063 driver includes a lockup protection mode, which turns-off the output current when the motor is under lock condition, and an automatic recovery that enables the fan to run when the lock condition is removed. Automotive AEC-Q100 Qualified, PPAP Available Upon Request.

Features
- Automotive AEC-Q100 Qualified, PPAP available upon request
- Position Sensorless BLDC Drivers (no Hall Sensor required)
- 180° Sinusoidal Drive for High Efficiency and Low Acoustic Noise
- Supports 2V to 14V Power Supplies
- Speed Control through Power Supply Modulation (PSM) and/or Pulse-Width Modulation (PWM)
- Built-In Frequency Generator (FG output signal)
- Built-In Lock-Up Protection and Automatic Recovery Circuit (external capacitor not
necessary)
- Built-In Overcurrent Limitation (1.5A)
- Built-In Overvoltage Protection
- Built-In Thermal Shutdown Protection
- Thermally Enhanced 8-Lead 4 mm x 4 mm DFN Package with Exposed Pad
- 23 kHz PWM Output Frequency
- No External Tuning Required
- Optimized for Fan Cooling Systems

Typical Applications
- Silent Notebook CPU/GPU Cooling Fans
- Air Ventilation System
- 12V 3-Phase BLDC Motors
