The UTC TDA2050 is a monolithic integrated circuit with high power consumption designed for use as a Class AB audio amplifier.
It can typically deliver 50W of music power at 4 ohms, which is loaded for over 1 second. VS=22.5V, f = 1KHz.
Due to its high supply voltage and very low harmonic and transition distortion, the device is suitable for both hi-fi and high-quality television sets.
- High output power (50W music power IEC 268.3 rules)
- High operating voltage (50V)
- Single or split care operations
- Very low distortion
- Short-circuit protection (OUT to GND)
- Thermal shutdown
In stock
SKU TDA 2050V

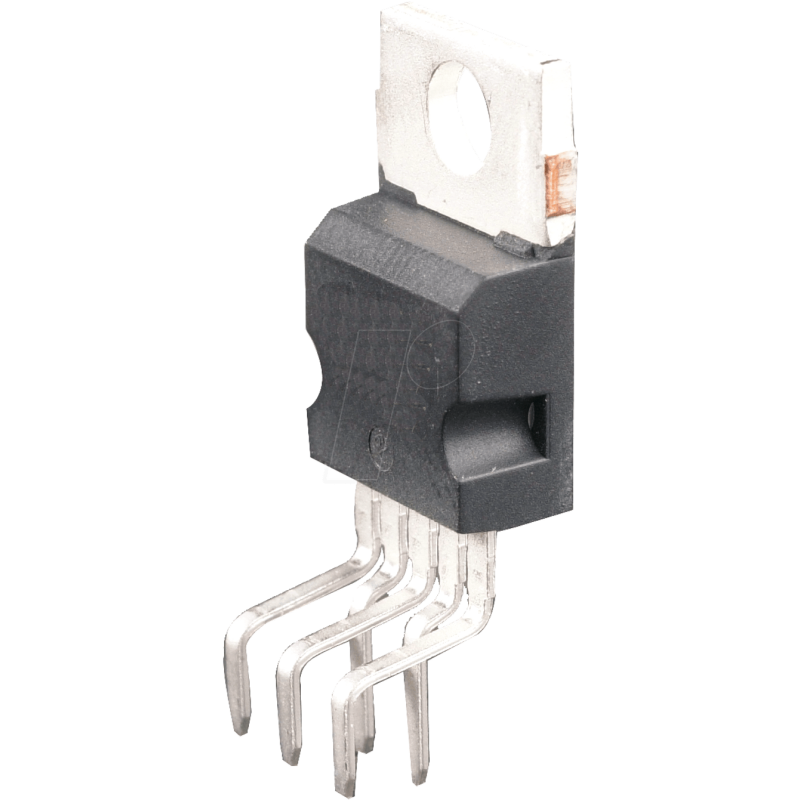

32W HI-FI AUDIO POWER AMP, 1-channel, Pentawatt-5
MPN TDA2050L-TB5-T
Manufacturer UTC UNISONIC TECHNOLOGIES
€1.34
incl. 19% VAT · €1.13 excl. VAT
Package
Pentawatt-5
Specifications
General
Model
Amplifier
Type
Audio
Design
32 W HiFi
Mounting form
Pentawatt-5
Other
Temperature range
-40 ... +150
Electrical values
Supply voltage
± 4.5 ... ± 25.0 VDC
Input voltage
± 4.5 ... ± 25.0 VDC
Output Current
5 A
Output power
32 W
Input Resistance
0.5 M-Ohm
Input Noise Voltage
4 µV
Input Bias Current
0.5 µA
Power Bandwidth
80 kHz
Suppley Voltage Rejection
45 dB
Closed Loop Voltage Gain
30.5 dB
Power loss
25 W
Distortion
0.5 %
Settings
Open Loop Voltage Gain
80 dB
Manufacturer specifications
Manufacturer
UTC UNISONIC TECHNOLOGIES
Manufacturer ID
TDA2050L-TB5-T
Weight
0.01 kg
RoHS
conform
EAN/GTIN
9900000206925
HS-Code
85423310
