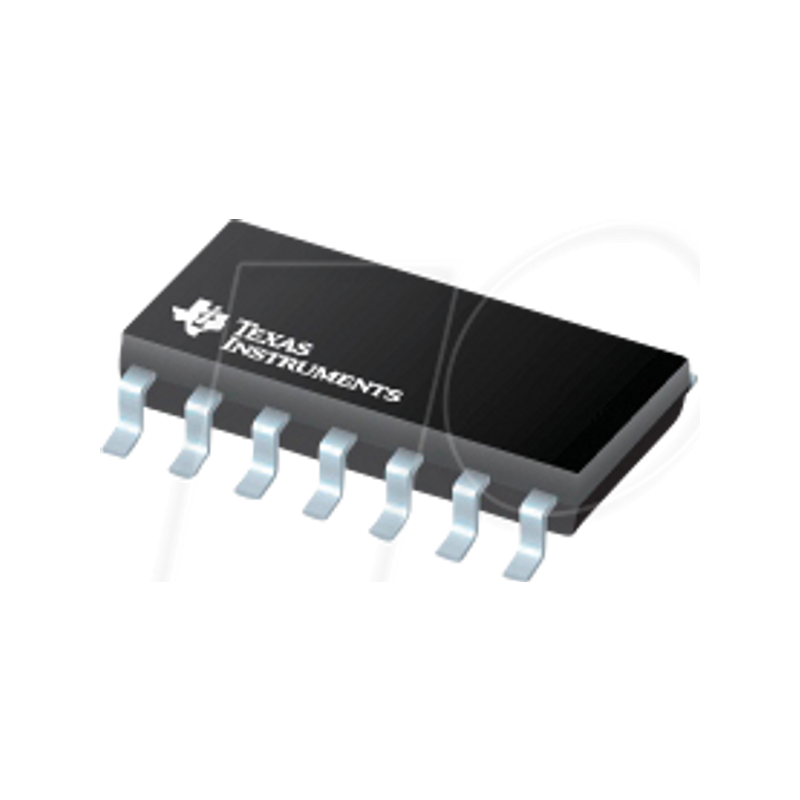

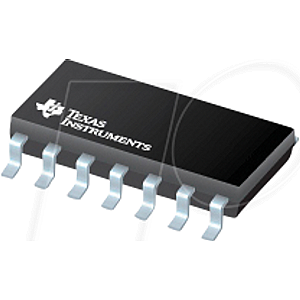

4-fold AND gate with 2 inputs, 2 ... 6 V, 50 mA, SO-14

In stock SKU 74AC 08D-SMD

4-fold AND gate with 2 inputs, 2 ... 6 V, 50 mA, SO-14

MPN SN74AC08D Manufacturer TEXAS INSTRUMENTS

€0.55

incl. 19% VAT · €0.46 excl. VAT

Package

SO-14

Specifications

General

family 74AC

Model AND-Gate

Type Digital IC

Design 4-fold

Mounting form SO-14

Other

Temperature range -40 ... +85

Electrical values

Supply voltage 2.0 ... 6.0 VDC

Input voltage 0 ... 6.0 VDC

Input voltage ViH 3.85 VDC

Input voltage ViL 0.9 VDC

Manufacturer specifications

Manufacturer TEXAS INSTRUMENTS

Manufacturer ID SN74AC08D

Weight 0.001 kg

RoHS conform

EAN/GTIN 9900000581343

HS-Code 85423990

Quadruple 2-Input Positive-AND Gates

Description
The AC08 devices are quadruple 2-input positive-AND gates. These devices perform the Boolean function Y = A - B or Y = A\ + B\ in positive logic.

Features
- 2-V to 6-V VCC Operation
- Inputs Accept Voltages to 6 V
- Max tpd of 7.5 ns at 5 V
