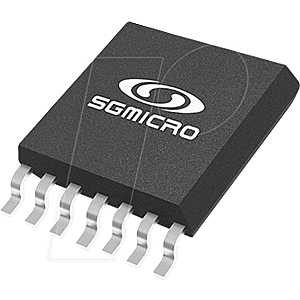

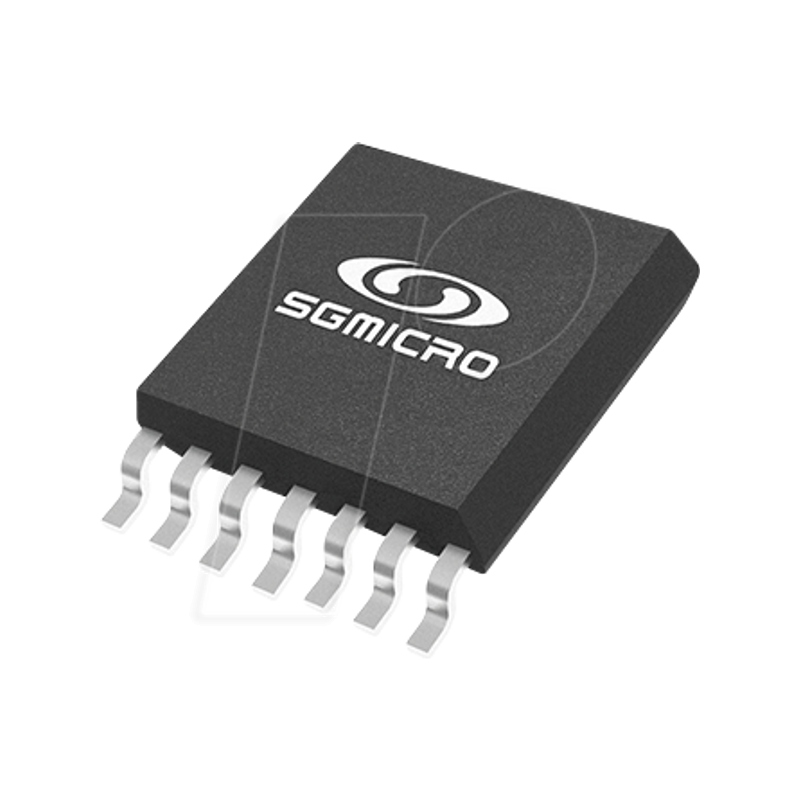

4-fold rail-to-rail OP, 2.0- 5.5 V, 6 MHz, 3.7 V/µs, SO-14

Quad Rail-to-Rail-CMOS-OP, 2,0- 5,5V, 6MHz, 3,7V/µs, SO-14

Description:
The SGM8631 (single), SGM8632 (dual) and SGM8633 (single with shutdown) are low noise, low voltage, and low power operational amplifiers that can be designed into a wide range of applications. The SGM8631/2/3 have a high gain-bandwidth product of 6MHz and a slew rate of 3.7V/µs. The SGM8633 has a power-down disable feature that reduces the supply current to less than 1µA. The SGM8631/2/3 are designed to provide optimal performance in low voltage and low noise systems. They provide rail to-rail output swing into heavy loads. The input common mode voltage range includes ground, and the maximum input offset voltage is 3.5mV for SGM8631/2/3. They are specified over the extended industrial temperature range (-40? to +125?). The operating supply range is from 2V to 5.5V.

Features:
- Rail-to-Rail Input and Output 3.5mV Maximum VOS
- High Gain-Bandwidth Product: 6MHz
- High Slew Rate: 3.7V/µs
- Settling Time to 0.1% with 2V Step: 0.5µs
- Overload Recovery Time: 0.9µs
- Low Noise: 13nV/ Hz at 1kHz
- Supply Voltage Range: 2V to 5.5V
- Input Voltage Range: -0.1V to +5.6V with VS = 5.5V
- Low Supply Current
- SGM8631/3: 570µA (TYP)
- SGM8632: 480µA/Amplifier (TYP)
- SGM8633: Less than 1µA Shutdown Current
- Small Packaging
- SGM8631 Available in SC70-5, SOT-23-5 and SOIC-8
- SGM8632 Available in MSOP-8 and SOIC-8
- SGM8633 Available in SOT-23-6 and SOIC-8

Applications:
- Sensors
- Audio
- Active Filters
- A/D Converters
- Communications
- Test Equipment
- Cellular and Cordless Phones
- Photodiode Amplification
- Battery-Powered Instrumentation
