Low-power quad operational amplifiers
Description
The LM124, LM224x and LM324x consist of four independent, high gain operational amplifiers with frequency compensation implemented internally. They operate from a single power supply over a wide range of voltages. Operation from split power supplies is also possible and the low-power supply current drain is independent of the magnitude of the power supply voltage.
Features
- Wide gain bandwidth: 1.3 MHz
- Input common mode voltage range includes ground
- Large voltage gain: 100 dB
- Very low supply current/amplifier: 375 µA
- Low input bias current: 20 nA
- Low input voltage: 3 mV max.
- Low input offset current: 2 nA
- Wide power supply range:
- Single supply: 3 V to 30 V
- Dual supplies: ±1.5 V to ±15 V
In stock
SKU LM 324 D STM

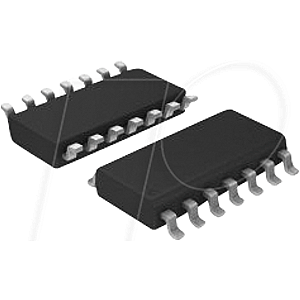

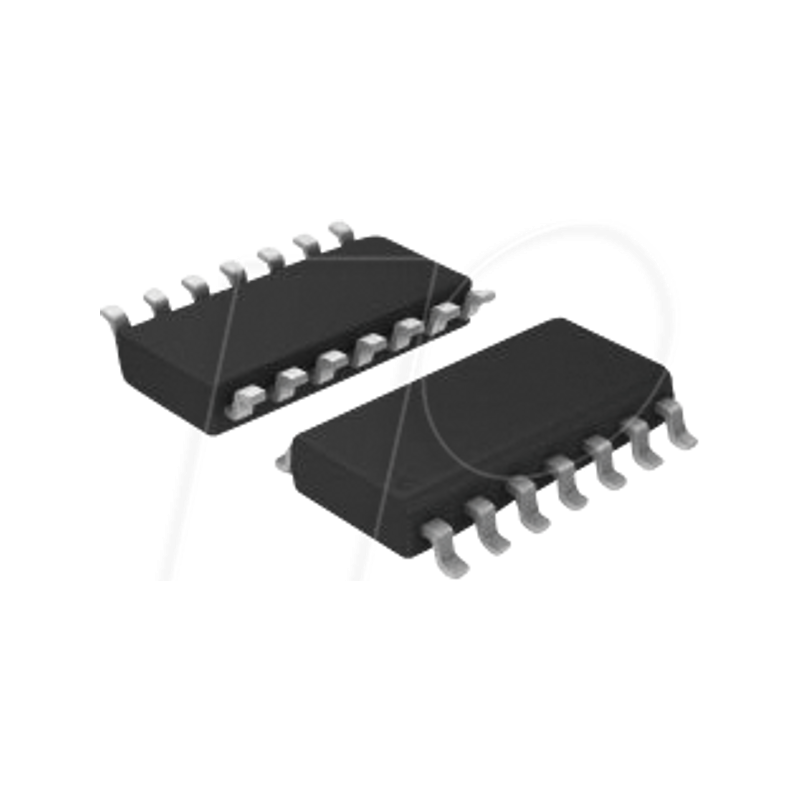

4-way operational amplifier, 1.3MHz, 3 - 30 V, SO-14
MPN LM324D
Manufacturer STMICROELECTRONICS
€0.27
incl. 19% VAT · €0.23 excl. VAT
Package
SO-14
Specifications
General
Type
Operationsverstärker
Model
Operational amplifier
Channels
4
Mounting form
SO-14
Other
Temperature range
0..+70
Electrical values
Supply voltage
3.0 ... 32.0 / ±1.5 ... ±16.0 VDC
Input voltage
-0.3 ... +32 VDC
Input current
0.05 A
Output voltage
5 - 28 V DC
Frequency
1.3 MHz
Suppley Voltage Rejection
110 dB
Manufacturer specifications
Manufacturer
STMICROELECTRONICS
Manufacturer ID
LM324D
Weight
1.0E-4 kg
RoHS
conform
EAN/GTIN
9900002797940
HS-Code
85423310
