L6506
Current controller for stepper motors
Description:
The L6506/D is a linear integrated circuit for sensing and controlling the current in stepper motors and similar devices. When used in conjunction with the L293, L298, L7150, L6114/L6115, the chipset forms a constant current drive for an inductive load and performs the entire interface function from control logic through the power stage. Two or more devices can be synchronized via the sync pin. In this mode, the oscillator in the master chip sets the operating frequency in all chips.
In stock
SKU L6506D

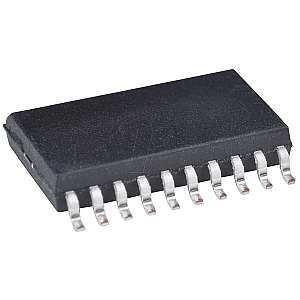

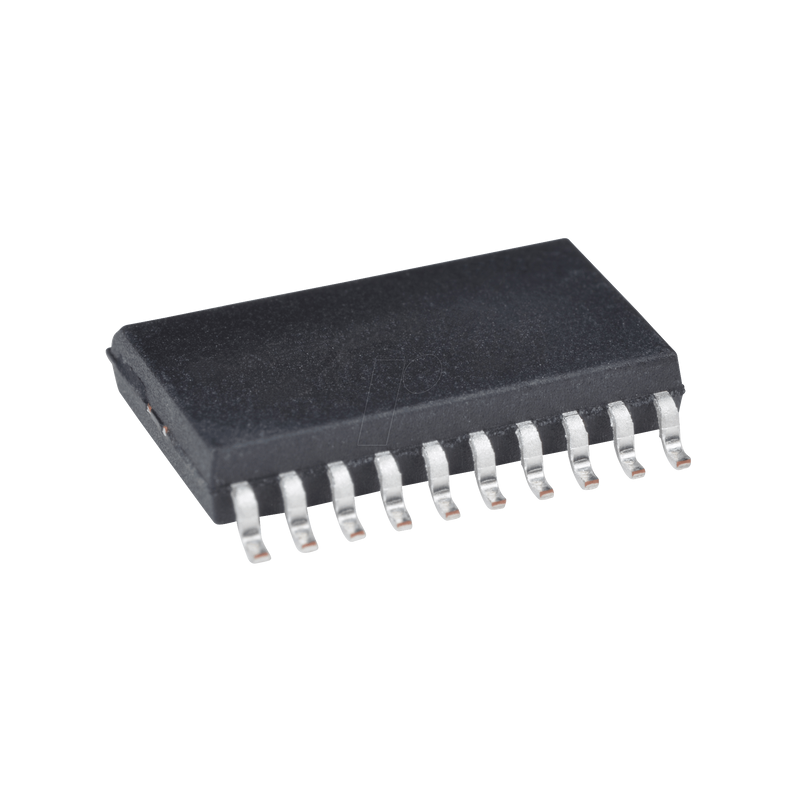

4x current controller for stepper motors, linear, SO-20
MPN L6506D
Manufacturer STMICROELECTRONICS
€4.31
incl. 19% VAT · €3.62 excl. VAT
Package
SO-20
Specifications
General
Model
Stromregler
Type
Motor driver
Design
Linear
Mounting form
SO-20
Electrical values
Supply voltage
4.5 .. 7 VDC
Input voltage
-0.3 ... 3 VDC
Output voltage
0.25 .. 3.5 V DC
Output power
0.8 W
Other
Temperature range
-40 .. +150
Manufacturer specifications
Manufacturer
STMICROELECTRONICS
Manufacturer ID
L6506D
Weight
0.001 kg
RoHS
conform
EAN/GTIN
9900002985682
HS-Code
85423990
