The CAP1296 is a turnkey capacitive touch controller providing a wide variety of button and proximity functionality, and making it easy for designers to add
aesthetically pleasing, low-cost and robust touch interfaces. It offers improved proximity detection with a Signal Guard option.
Key features:
- Six capacitive touch sensor inputs
- Programmable sensitivity
- Automatic recalibration
- Combo mode: Key and Proximity
- Press and Hold feature for volume-like applications
- Power button support
- Signal Guard
- Low-power operations
- 8-KV protection
Communication interface:
- I²C™ and SMBus
Operating conditions:
- 3.0 V to 5.5 V
Package type:
- 10-pin 3x3 DFN

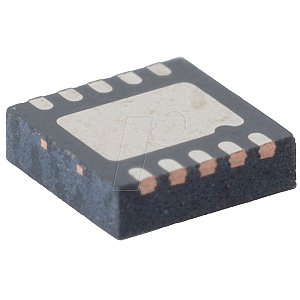

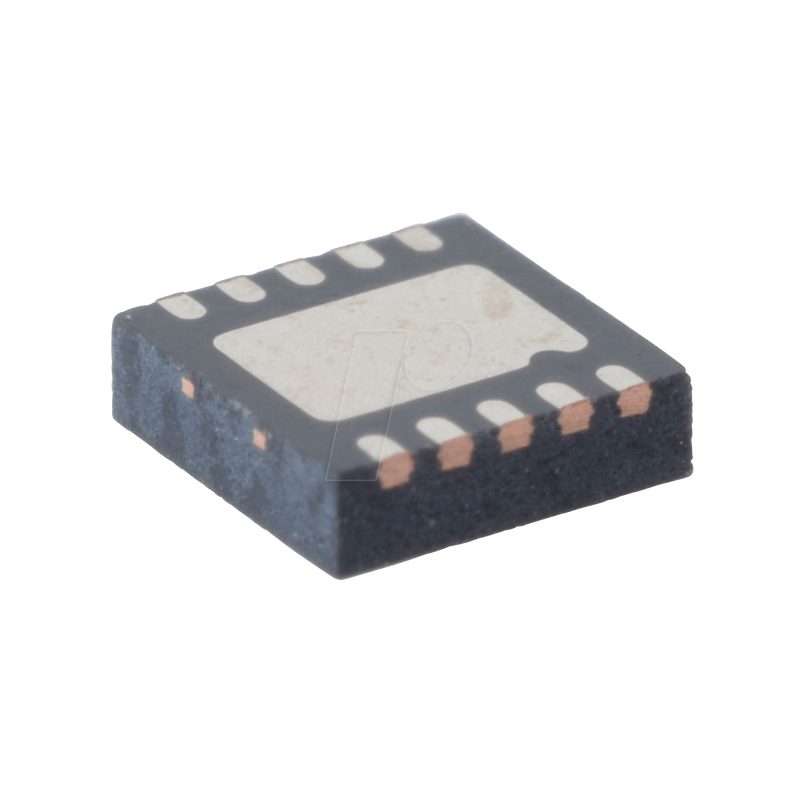

6-channel touch controller, capacitive, DFN-10
€1.55CAP 1296-1-AIATR
Technical information
| General | |
|---|---|
| Model | Driver |
| Type | Touch-Controller |
| Design | 6-channel |
| Mounting form | DFN-10 |
| Manufacturer specifications | |
| Manufacturer | MICROCHIP |
| Manufacturer ID | CAP1296-1-AIA-TR |
| Weight | 0.001 kg |
| RoHS | conform |
| EAN/GTIN | 9900001463518 |
| HS-Code | 85423990 |
