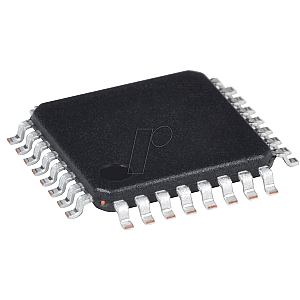

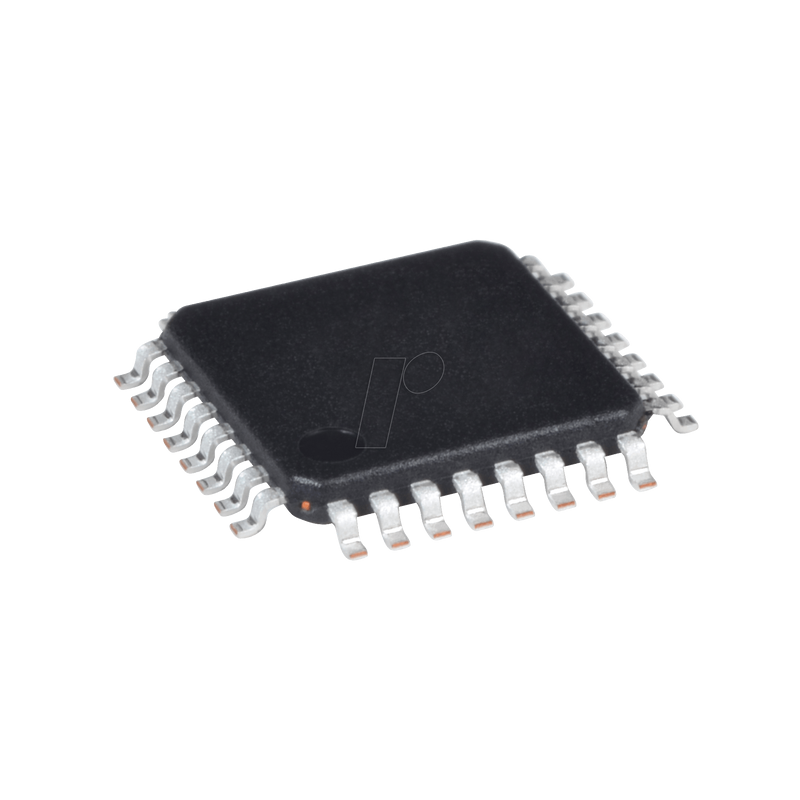

8-bit ATMega AVR microcontroller, 16 KB, 20 MHz, TQFP-32

Description
The powerful microchip picoPower 8-bit AVR RISC-based microcontroller combines 16 KB ISP flash memory with read and write capabilities, 512B EEPROM, 1 KB SRAM, 23 general I/O lines, 32 general work registers, 3 flexible timers/counters with comparison modes, internal and external interrupts, serial programmable USART, 1 byte-oriented serial 2-wire interface, serial SPI port, 6-channel 10-bit A/D converter (8-channels in TQFP and QFN/MLF packages), programmable watchdog timer with internal oscillator and five software-selectable power-saving modes. The module operates between 1.8 and 5.5 V.
By executing powerful commands in a single clock cycle, the module achieves throughput close to 1 MIPS per MHz, balancing power consumption and processing speed.

Features
• Program memory type: flash
• Program memory size (KB): 16
• CPU speed (MIPS/DMIPS): 20
• SRAM (KB): 1
• Data EEPROM/HEF (bytes): 512
• Digital communication peripherals: 1-UART, 2-SPI, 1-I2C
• Acquisition/comparison/PWM peripherals: 1 input acquisition, 1 CCP, 6 PWM
• Timer: 2 x 8-bit, 1 x 16-bit
• Number of comparators: 1
• Temperature range (°C): -40 to 85
• Operating voltage range (V): 1.8 to 5.5
• Pin number: 32
• Low power: yes
