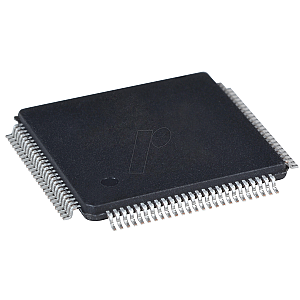

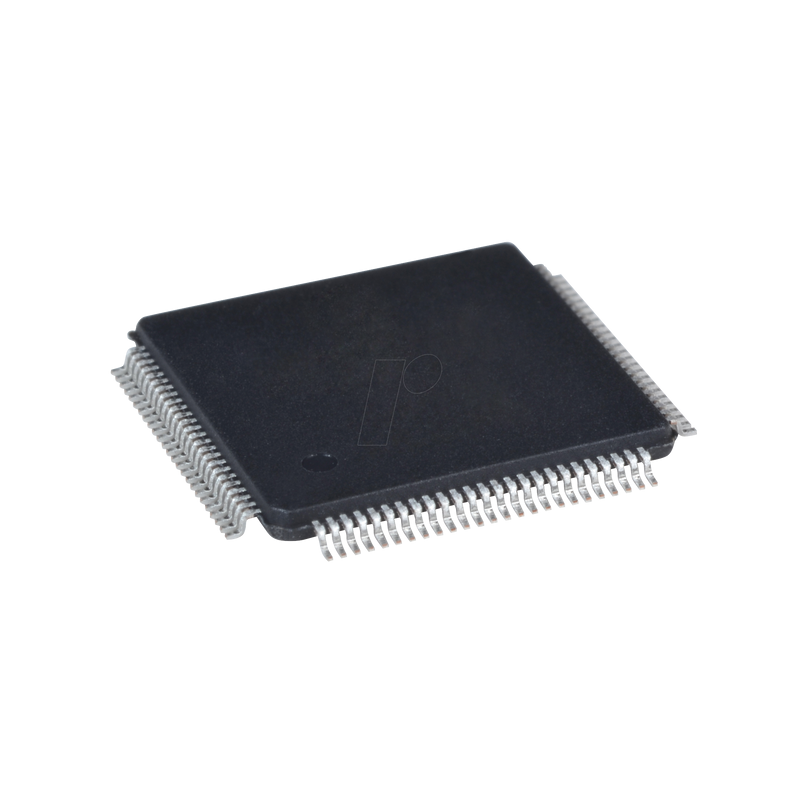

8-bit ATMega AVR® microcontroller, 256 KB, 8 MHz, TQFP-100

ATMEGA 2560V-8 AU

Description:

Microchip's high-performance, low-power 8-bit AVR RISC-based microcontroller combines 256 KB of ISP Flash memory, 8 KB of SRAM, 4 KB of EEPROM, 86 general purpose I/O lines, 32 general purpose working registers, real-time counters, six flexible timers/counters with compare modes, PWM, 4 USARTs, 2-wire byte-oriented serial interface, 16-channel 10-bit A/D converters and a JTAG interface for on-chip debugging.
By executing powerful instructions in a single clock cycle, the device achieves throughput close to 1 MIPS per MHz while maintaining a good balance between power consumption and processing speed.

Properties :

- Size of the program memory (KB) : 256
- CPU speed : 8 MHz
- SRAM (B) : 8,192
- Data EEPROM/HEF (Bytes) : 4096
- Digital communication peripherals : 4-UART, 5-SPI, 1-I2C
- acquisition/comparison/PWM peripherals : 4 input acquisition, 4 CCP, 16PWM
- Timer : 2 x 8-bit, 4 x 16-bit
- Number of comparators : 1
- Temperature range (°C) : -40 to 85
- Operating voltage range (V) : 1.8 to 5.5
- Pin number : 100
