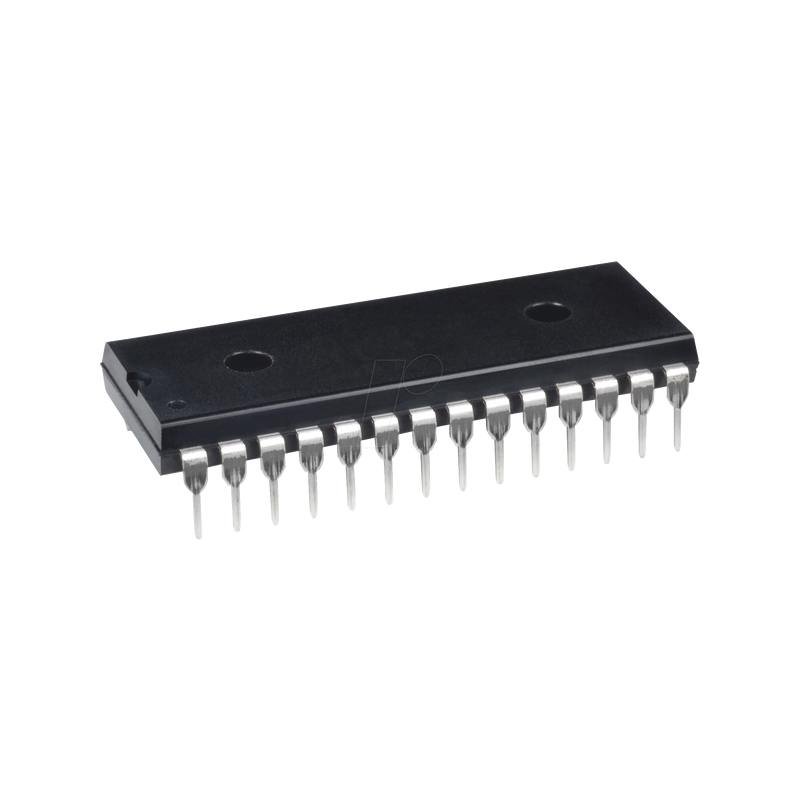

8-bit ATMega AVR microcontroller, 8 KB, 16 MHz, PDIP-28

ATmega8A

Description:
The high-performance, low-power Microchip 8-bit AVR® RISC-based microcontroller combines 8KB ISP flash memory with read-while-write capabilities, 512B EEPROM, 1 KB SRAM, 23 general purpose I/O lines, 32 general purpose working registers, three flexible timer/counters with compare modes, internal and external interrupts, serial programmable USART, a byte-oriented two-wire serial interface, 6-channel 10-bit A/D converter (8-channel in TQFP and QFN/MLF packages), programmable watchdog timer with internal oscillator, SPI serial port, and five software selectable power saving modes. The device operates between 2.7-5.5 volts.

By executing powerful instructions in a single clock cycle, the device achieves throughputs approaching 1 MIPS per MHz, balancing power consumption and processing speed.

Features:
- Program Memory Type: Flash
- Program Memory Size (KB): 8
- CPU Speed (MIPS/DMIPS): 16
- SRAM (B): 1024
- Data EEPROM/HEF (bytes): 512
- Digital Communication Peripherals: 1-UART, 1-SPI, 1-I2C
- Timers: 2 x 8-bit, 1 x 16-bit
- Number of Comparators: 1
- Temperature Range (°C): -40 to 85
- Operating Voltage Range (V): 2,7 to 5.5
- Pin Count: 28
