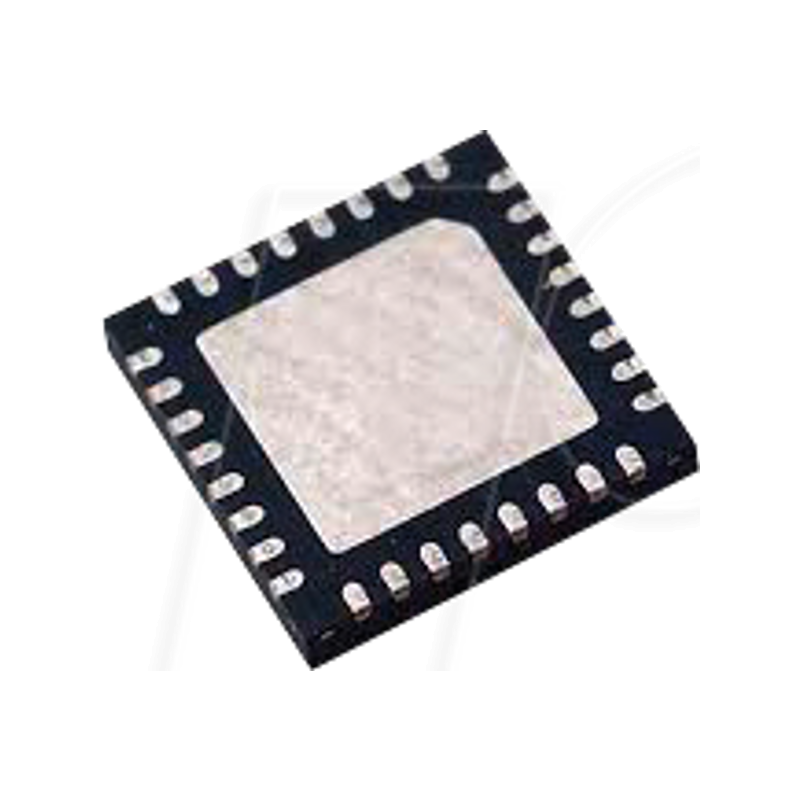

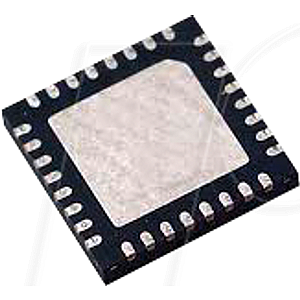

8-bit ATmega AVR microcontroller, 8 KB, 16 MHz, VQFN-32

ATmega8A

Description:
Microchip's high-performance, low-power 8-bit AVR® RISC-based microcontroller combines 8 KB of ISP flash memory with read and write capabilities, 512B of EEPROM, 1 KB of SRAM, 23 general purpose I/O lines, 32 general purpose working registers, three flexible timers/counters with compare modes, internal and external interrupts, serial programmable USART, one byte-oriented two-wire serial interface, 6-channel 10-bit A/D converter (8-channel in TQFP and QFN/MLF package), programmable watchdog timer with internal oscillator, serial SPI port and five software selectable power saving modes. The device operates between 2.7-5.5 volts.
By executing powerful instructions in a single clock cycle, the device achieves a throughput of nearly 1 MIPS per MHz, achieving a balance between power consumption and processing speed.

Features:
- Program memory type: Flash
- Program memory size (KB): 8
- CPU speed (MIPS/DMIPS): 16
- SRAM (B): 1024
- Data EEPROM/HEF (bytes): 512
- Digital communication peripherals: 1-UART, 1-SPI, 1-I2C
- Timers: 2 x 8-bit, 1 x 16-bit
- Number of comparators:1
- Temperature range (°C): -40 to 85
- Operating voltage range (V): 2.7 to 5.5
- Number of pins:32
