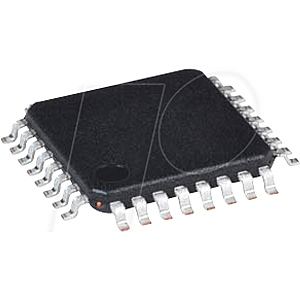

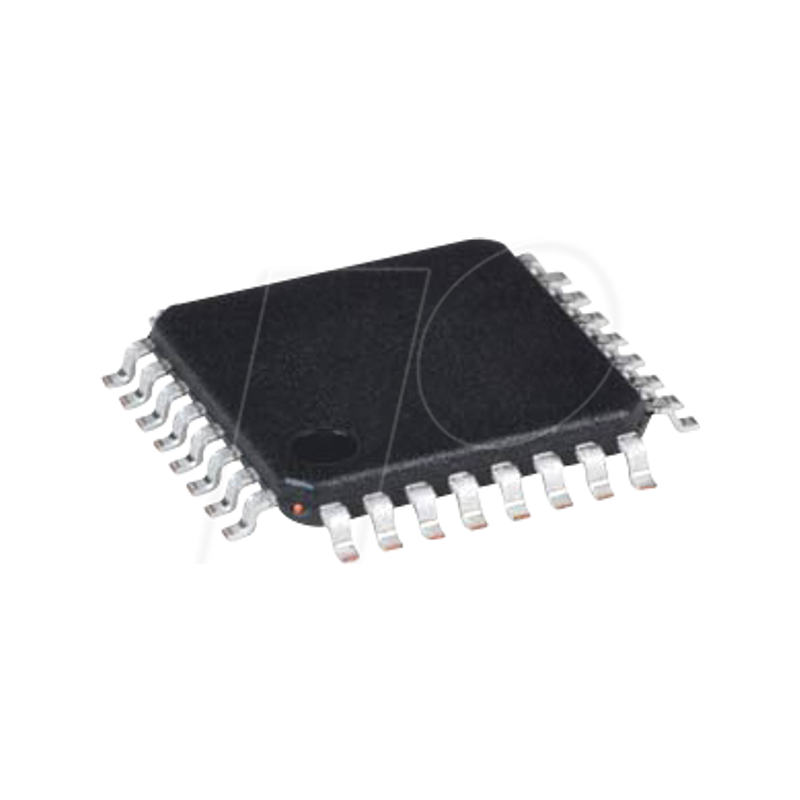

8-bit ATMega AVR® microcontroller, 8 kB, 20 MHz, TQFP-32

The ATmega48PB/88PB/168PB is a low-power CMOS 8-bit microcontroller based on the AVR® enhanced RISC architecture. By executing powerful commands in a single clock cycle, the ATmega48PB/88PB/
168PB achieves throughputs of nearly 1 MIPS per MHz, allowing system designers to optimise power consumption against processing speed.

Peripheral features

Two 8-bit timer/counters (TC) with separate prescaler and compare mode
16-bit timer/counter with separate prescaler, compare mode and capture mode
Real-time counter (RTC) with separate oscillator
Six pulse-width modulation channels (PWM)
8-channel 10-bit ADC with temperature measurement
Programmable serial USART with start-of-frame detection
Serial master/slave SPI interface
Byte-oriented two-wire serial interface (Phillips I 2 C compatible)
Programmable watchdog timer (WDT) with separate on-chip oscillator
On-chip analogue comparator

Operating voltage: 1.8 - 5.5V
Temperature range: -40°C to 105°C
Speed range: 0 - [email protected] - 5.5V, 0 - 10 Mhz @ 2.7 - 5.5.V, 0 - 20 MHz @ 4.5 - 5.5 V
