The ATmega808/809/1608/1609 microcontrollers belong to the megaAVR® 0 series, which uses the AVR® processor with hardware multiplier at up to 20 MHz and offers a wide range of flash sizes up to 48 KB, up to 6 KB SRAM and 256 bytes EEPROM in 28-, 32-, 40- or 48-pin housings.
The series utilises Microchip's latest technologies with a flexible and power-saving architecture, including Event System and SleepWalking, precision analogue features and advanced peripherals.
In stock
SKU ATMEGA 809-AF

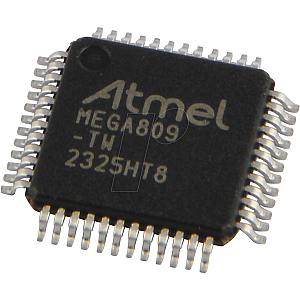

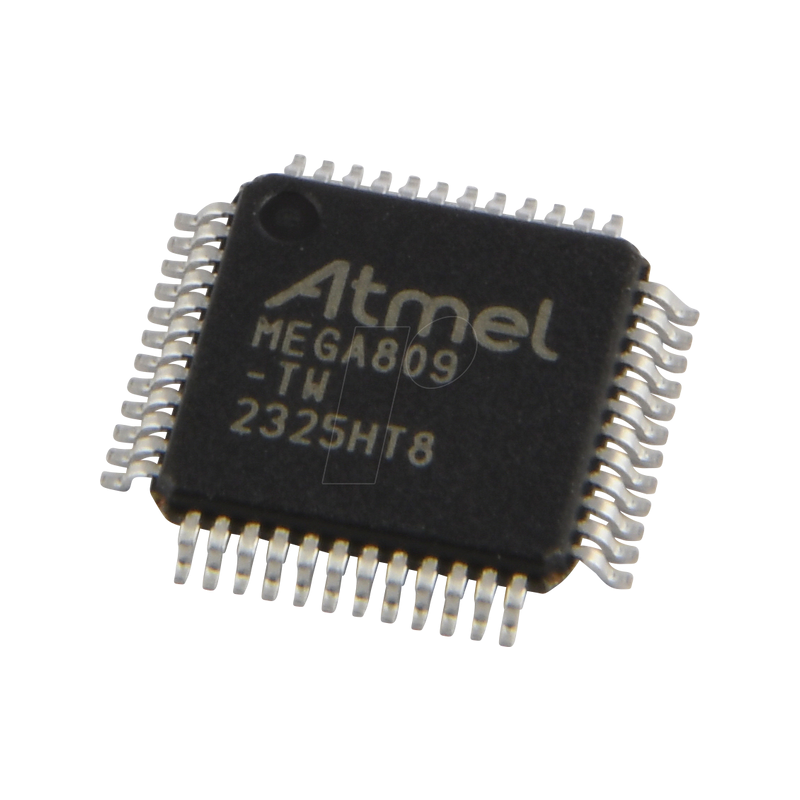

8-bit ATMega AVR® microcontroller, 8 kB, 20 MHz, TQFP-48
MPN ATMEGA809-AF
Manufacturer MICROCHIP
€3.21
incl. 19% VAT · €2.70 excl. VAT
Package
TQFP-48
Specifications
General
Type
8-Bit Mikrocontroller
Technology
AVR® RISC
Model
ATMEGA809
Design
Watchdog
Mounting form
TQFP-48
Specials
CPU clock
20 MHz
Protocoll
+1.8 ... +5.5
Implementation
Memory
8
RAM
1 kByte
EEPROM
256 Byte
I/O-Pins
41
16-bit Timer
5
Interfaces
I²C
1
SPI
1
ODC
16
I/O/USART
4
Electrical values
Supply voltage
-40 +125 VDC
Other
Temperature range
1
Manufacturer specifications
Manufacturer
MICROCHIP
Manufacturer ID
ATMEGA809-AF
Weight
0.0033 kg
RoHS
conform
EAN/GTIN
9900004075671
HS-Code
85423190
