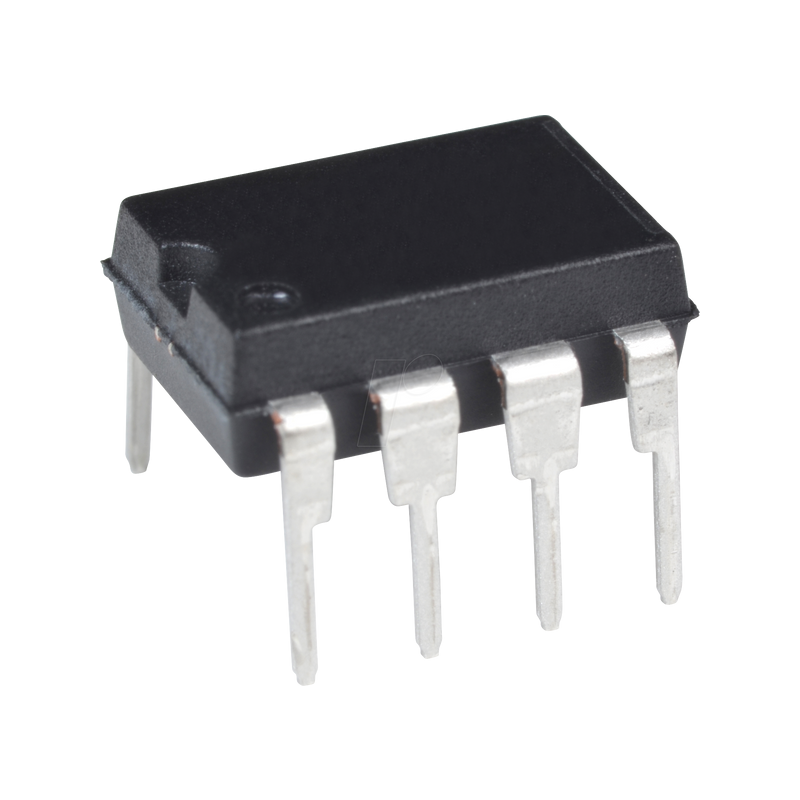

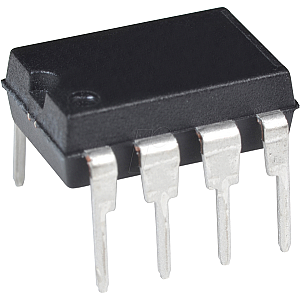

8-bit ATtiny AVR-RISC microcontroller, 1 KB, 20 MHz, DIP-8

8-bit AVR microcontroller with 1K Byte In-System programmable Flash

Description:

The Microchip picoPower 8-bit AVR RISC based microcontroller with 1 KB ISP Flash, 64-Byte EEPROM, 64-Byte SRAM, 32-Byte register file and 4-channel 10-Bit A/D converter. The device achieves a throughput of up to 20 MIPS at 20 MHz with 1.8-5.5 V operation.
By executing powerful instructions in a single clock cycle, the ATtiny13A achieves a throughput of nearly 1 MIPS per MHz, which allows optimizing the power consumption in relation to the processing speed.

Features:
- High performance, low power AVR® 8-bit microcontroller
- Advanced RISC architecture:
- 120 powerful instructions - most one-stroke cycle executions
- 32 x 8 Working register for general purposes
- Completely static operation
- Up to 20 MIPS throughput at 20 MHz
- Non-volatile memory segments with high endurance:
- 1K byte system internal self-programmable flash program memory
- 64 bytes EEPROM
- 64 bytes internal SRAM
- write/erase cycles: 10,000 Flash/100,000 EEPROM
- Data storage: 20 years at 85°C/100 years at 25°C (see page 6)
- Programming lock for self-programming Flash & EEPROM data security
- Peripheral features:
- One 8-bit timer/counter with prescaler and two PWM channels
- 4-channel, 10-bit ADC with internal voltage reference
- Programmable watchdog timer with separate on-chip oscillator
- On-chip analog comparator
- Special microcontroller features:
- debugWIRE On-chip Debug System
- Programmable in the system via SPI port
- External and internal interrupt sources
- Low power idle, ADC noise reduction and shutdown modes
- Advanced power-on reset circuit
- Programmable brown-out detection circuit with software shutdown function
- Internally calibrated oscillator
- I/O and designs:
- 8-pin PDIP/SOIC: Six programmable I/O lines
- 10-pad MLF: Six programmable I/O lines
- 20-pad MLF: Six programmable I/O lines
- Operating voltage:
- +1.8 - +5.5V
- Speed degree:
- 0 - 4 MHz at 1.8 - 5.5V
- 0 - 10 MHz at 2.7 - 5.5V
- 0 - 20 MHz at 4.5 - 5.5V
- Industrial temperature range
- Low power consumption:
- Active mode: 190 µA at 1.8 V and 1 MHz
- Idle mode: 24 µA at 1.8 V and 1 MHz
- 24 µA at 1.8 V and 1 MHz
