ATtiny13
Description:
The high-performance, low-power Microchip 8-bit AVR RISC-based microcontroller combines 1KB ISP flash memory, 64B SRAM, 64B EEPROM, a 32B register file, and a 4-channel 10-bit A/D converter. The device supports a throughput of 20 MIPS at 20 MHz and operates between 2.7-5.5 volts.
By executing powerful instructions in a single clock cycle, the device achieves throughputs approaching 1 MIPS per MHz, balancing power consumption and processing speed.
Features:
- Program Memory Type: Flash
- Program Memory Size (KB): 1
- CPU Speed (MIPS/DMIPS): 20
- SRAM (B): 64
- Data EEPROM/HEF (bytes): 64
- Capture/Compare/PWM Peripherals: 2PWM
- Timers: 1 x 8-bit
- Number of Comparators: 1
- Temperature Range (°C): -40 to 85
- Operating Voltage Range (V): 1.8 to 5.5
- Pin Count: 8
In stock
SKU ATTINY 13-20 DIP

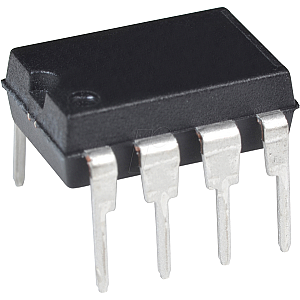

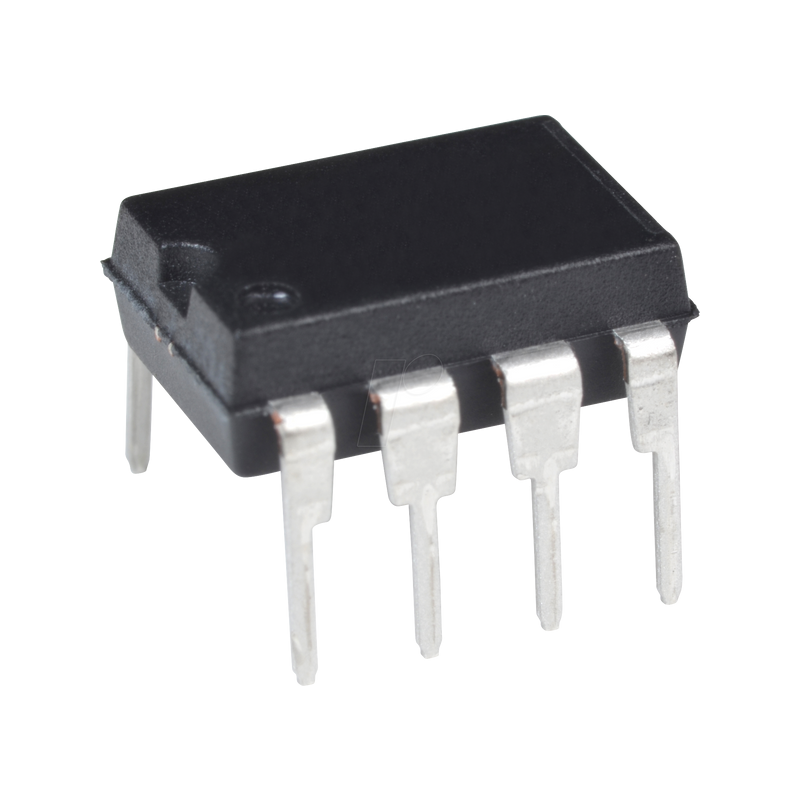

8-bit ATTiny AVR RISC microcontroller, 1 KB, 20 MHz, DIP-8
MPN ATTINY13-20PU
Manufacturer MICROCHIP
€2.74
incl. 19% VAT · €2.30 excl. VAT
Package
PDIP-8
Specifications
General
Type
8-bit microcontroller
Technology
AVR RISC architecture
Model
ATtiny13
Design
Watchdog
Mounting form
PDIP-8
Specials
CPU clock
20 MHz
Implementation
Memory
1
RAM
0.064 kByte
EEPROM
64 Byte
I/O-Pins
6
8-bit Timer
1
PWM
2
Analog comparator
1
Interfaces
ODC
4-bit
Electrical values
Supply voltage
+1.8 ... +5.5 VDC
Other
Temperature range
-40 ... +85
Manufacturer specifications
Manufacturer
MICROCHIP
Manufacturer ID
ATTINY13-20PU
Weight
0.001 kg
RoHS
conform
EAN/GTIN
9900000583217
HS-Code
85423190
