The ATtiny1616 is a microcontroller with the 8-bit AVR® processor with hardware multiplier, which runs at up to 20 MHz and features 16 KB Flash, 2 KB SRAM and 128B EEPROM in a 20-pin package. The series uses the latest Core Independent Peripherals with power-saving features, including event system, intelligent analog and advanced peripherals. The integrated QTouch® peripheral touch controller supports capacitive touch interfaces with proximity sensor and driven shielding.
Functional safety
This product is recommended for safety-critical applications targeting industrial and automotive products (IEC 61508 and ISO 26262). The necessary documentation, such as the FMEDA report and a safety manual, can be provided on request. MPLAB® X IDE and the MPLAB® XC8 compiler are available in a security-certified version. Contact your local Microchip sales office for more information.
In stock
SKU ATTINY1616-MNR

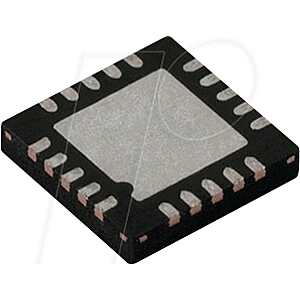

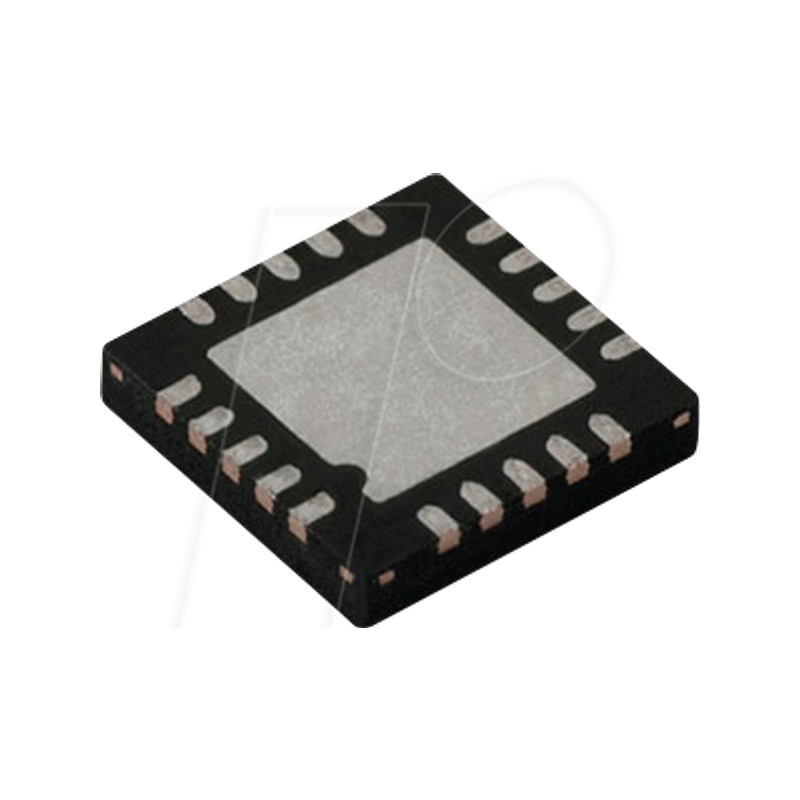

8-bit ATTiny AVR-RISC microcontroller, 16 KB, 20 MHz, QFN-20
MPN ATTINY1616-MNR
Manufacturer MICROCHIP
€0.82
incl. 19% VAT · €0.69 excl. VAT
Package
VQFN-20
Specifications
General
Type
8-bit microcontroller
Technology
AVR® RISC
Model
ATTINY1616
Design
WDT, EVSYS, CCL, DAC
Mounting form
VQFN-20
Specials
CPU clock
20 MHz
Implementation
Memory
16
RAM
2 kByte
EEPROM
256 Byte
I/O-Pins
18
12-bit Timer
1
16-bit Timer
3
Internal oscillator
16/20MHz
Analog comparator
3
Interfaces
I²C
1
SPI
1
ODC
12+8
DAC
3
I/O/USART
1
Interfaces
I2C, SPI, USART
Electrical values
Supply voltage
+1.8 ... +5.5 VDC
Other
Temperature range
-40 ... +105
Manufacturer specifications
Manufacturer
MICROCHIP
Manufacturer ID
ATTINY1616-MNR
Weight
0.001 kg
RoHS
conform
EAN/GTIN
9900003540231
HS-Code
85423190
