ATTINY1606-SN
Description:
The ATtiny1606 is a microcontroller using the 8-bit AVR® processor with a hardware multiplier, running up to 20 MHz and 16 KB Flash, 1kB SRAM, and 256 bytes of EEPROM in an 20-pin package. The series uses the latest technologies from Microchip with a flexible and low-power architecture, including Event System and SleepWalking, accurate analog features and advanced peripherals.
Features:
- 135 instructions
- Hardware multiplier
- Ultra Low Power (ULP)
- Idle
- Standby
- Power Down
- 3 Channels Event System
- Configurable Custom Logic (CCL)
- 12 Channel 10-bit ADC with Voltage Reference
- Comparators
- 2x 16-bit Timer (TCA / TCB)
- Cyclical Redundancy Check (CRC/SCAN)
- Watchdog Timer (WDT)
- Power-On Reset (POR)
- Brown-Out Detection (BOD)
- Single pin programming and debugging interface (UPDI)
- Operation Voltage: 1.8V - 5.5V
In stock
SKU ATTINY1606-SN

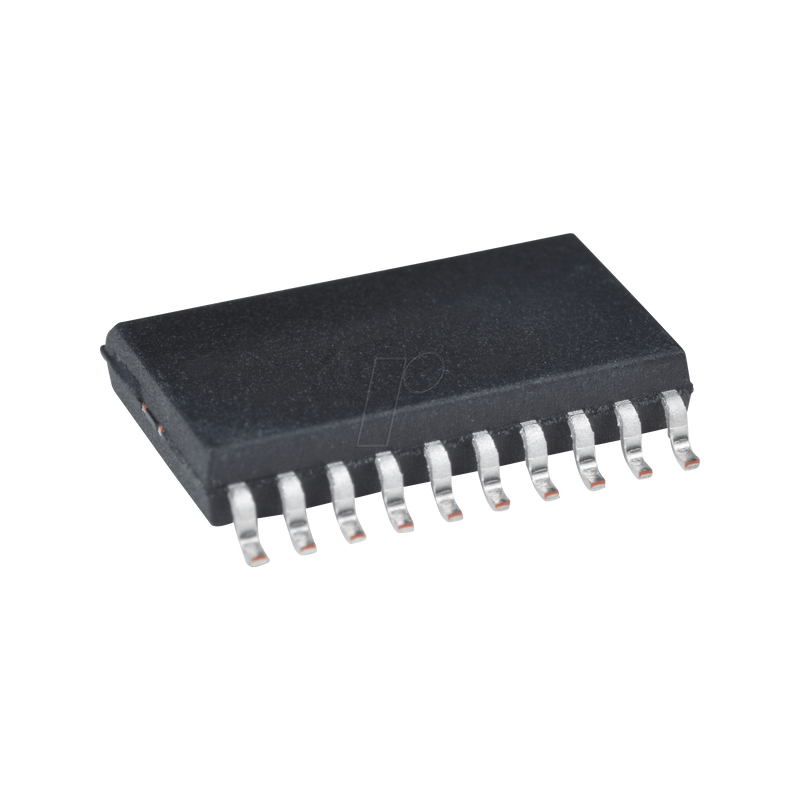

8-bit ATTiny AVR-RISC microcontroller, 16 KB, 20 MHz, SOIC-20
MPN ATTINY1606-SN
Manufacturer MICROCHIP
€1.92
incl. 19% VAT · €1.61 excl. VAT
Package
SOIC-20
Specifications
General
Type
8-bit microcontroller
Technology
AVR® RISC
Model
ATTINY160
Design
WDT, EVSYS, CCL
Mounting form
SOIC-20
Specials
CPU clock
20 MHz
Implementation
Memory
16
RAM
1 kByte
EEPROM
256 Byte
I/O-Pins
18
16-bit Timer
2
Analog comparator
1
Interfaces
I²C
1
SPI
1
ODC
12
I/O/USART
1
Electrical values
Supply voltage
+1.8 ... +5.5 VDC
Other
Temperature range
-40 ... +85
Manufacturer specifications
Manufacturer
MICROCHIP
Manufacturer ID
ATTINY1606-SN
Weight
0.005 kg
RoHS
conform
EAN/GTIN
9900003354326
HS-Code
85423190
