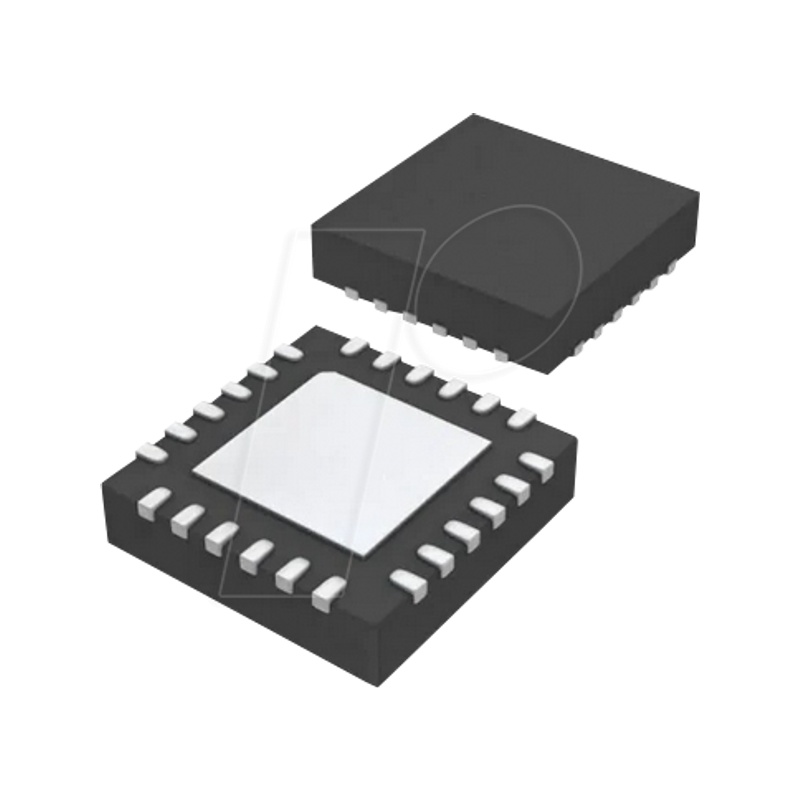

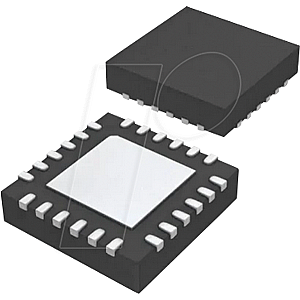

8-bit ATtiny AVR-RISC microcontroller, 16 KB, 20 MHz, VQFN-24

ATTINY1627, tinyAVR® 2 Family

Description
The ATtiny1627 is a microcontroller featuring the AVR® CPU with hardware multiplier, running at up to 20 MHz and with 16 KB Flash, 2 KB SRAM, and 256B EEPROM in a 24-pin VQFN 4 x 4 mm package. The family uses the latest Core Independent Peripherals with low-power features, including Event System, intelligent analog and advanced peripherals.
The new 12-bit ADC offers true differential measuring capabilities with optional hardware accumulation of up to 1024 samples, which effectively gives up to 17-bits resolution. With sampling rates up to 375 ksps, the analog data is available very rapidly. The Programmable Gain Amplifier (PGA) for the ADC can amplify single-ended and differential analog inputs to make it possible to measure even small amplitude signals efficiently.

Features
- High-Performance Low-Power AVR® CPU
- Running at up to 20 MHz
- Single-cycle I/O access
- Two-level interrupt controller with vectored interrupts
- Two-cycle hardware multiplier
- Supply voltage range: 1.8V to 5.5V

- Memories
- 16 KB In-System self-programmable Flash memory
- 2 KB SRAM
- 256B EEPROM
- 32B of user row in nonvolatile memory that can keep data during chip-erase and be programmed while the device is locked
- Write/erase endurance - Flash 10,000 cycles - EEPROM 100,000 cycles
- Data retention: 40 years at 55°C

- System
- Power-on Reset (POR)
- Brown-out Detection (BOD)
- Clock options
- Lockable 20 MHz Low-Power internal oscillator
- 32.768 kHz Ultra Low-Power (ULP) internal oscillator
- 32.768 kHz external crystal oscillator
- External clock input
- Single-pin Unified Program and Debug Interface (UPDI)
- Three sleep modes
- Idle with all peripherals running and immediate wake-up time
- Standby with configurable operation of selected peripherals
- Power-Down with full data retention

- Peripherals
- 1x 16-bit Timer/Counter type A (TCA) with a dedicated period register + 3x PWM channels
- 2x 16-bit Timer/Counter type B (TCB) with input capture and simple PWM functionality
- 1x 16-bit Real-Time Counter (RTC) running from external 32.768 kHz crystal or internal 32.768 kHz ULP oscillator
- 2x Universal Synchronous Asynchronous Receiver Transmitter (USART) with fractional baud rate generator, auto-baud, and start-of-frame detection
- Master/Slave Serial Peripheral Interface (SPI)
- Master/Slave Two-Wire Interface (TWI) with dual address match
- Standard mode (Sm, 100 kHz)
- Fast mode (Fm, 400 kHz)
- Fast mode plus (Fm+, 1 MHz)
- Event System for CPU independent and predictable inter-peripheral signaling
- Configurable Custom Logic (CCL) with four programmable Look-Up Tables (LUT)
- 1x Analog Comparator (AC) with scalable reference input
- 1x 12-bit differential 375 ksps ADC with Programmable Gain Amplifier (PGA) and up to 15 input channels
- Multiple internal voltage references
- 1.024V
- 2.048V
- 2.500V
- 4.096V
- VDD
- Automated Cyclic Redundancy Check (CRC) flash memory scan
- Watchdog Timer (WDT) with Window Mode, with a separate on-chip oscillator
- External interrupt on all general purpose pins

- I/O and Packages
- Up to 22 programmable I/O pins
- 14-pin - SOIC - TSSOP
- 20-pin - SOIC - SSOP - VQFN 3x3 mm
- 24-pin - VQFN 4x4 mm

- Temperature Ranges
- -40°C to 85°C (standard)
- -40°C to 125°C (extended)

- Speed Grades (-40°C to 85°C)
- 0-5 MHz @ 1.8V - 5.5V
- 0-10 MHz @ 2.7V - 5.5V
- 0-20 MHz @ 4.5V - 5.5V

- Speed Grades (-40°C to 125°C)
- 0-8 MHz @ 2.7V - 5.5V
- 0-16 MHz @ 4.5V - 5.5V
