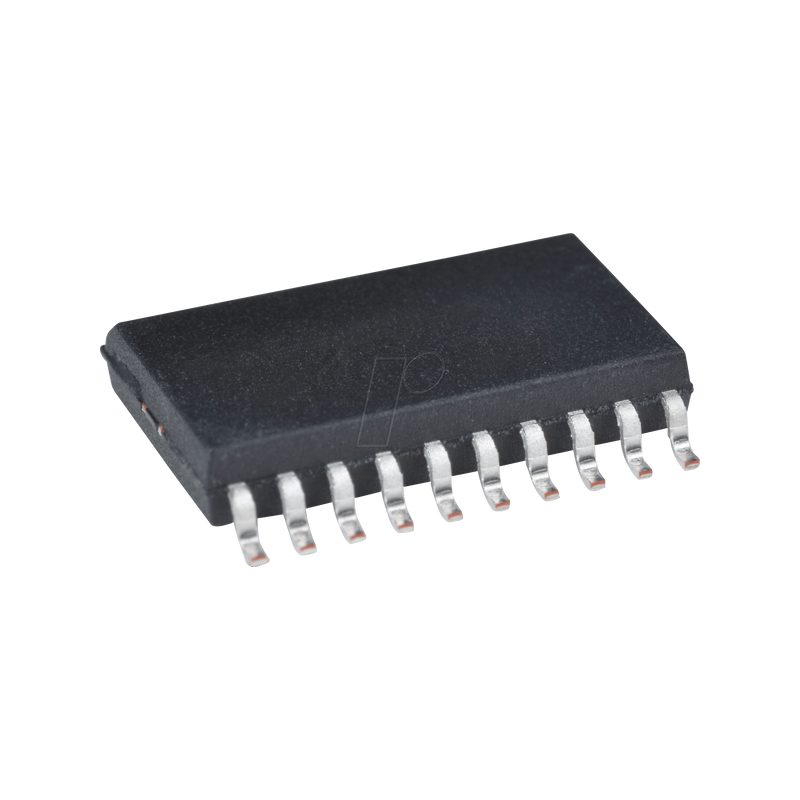

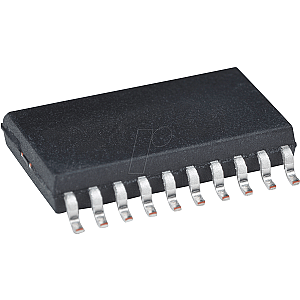

8-bit ATTiny AVR-RISC microcontroller, 2 KB, 20 MHz, SO-20

ATtiny261A

Description:
The high-performance Microchip picoPower 8-bit AVR RISC-based microcontroller combines 2KB flash memory, 128B EEPROM, 128B SRAM, 16 general purpose I/O lines, 32 general purpose working registers, an 8-bit timer/counter with compare modes, an 8-bit high speed timer/counter, a universal serial interface (USI), internal and external Interrupts, an 11-channel 10-bit A/D converter, programmable watchdog timer with internal oscillator, and four software selectable power saving modes. The device operates between 1.8-5.5 volts.
By executing powerful instructions in a single clock cycle, the device achieves throughputs approaching 1 MIPS per MHz, balancing power consumption and processing speed.

Features:
- Program Memory Type: Flash
- Program Memory Size (KB): 2
- CPU Speed (MIPS/DMIPS): 20
- SRAM (B): 128
- Data EEPROM/HEF (bytes): 128
- Digital Communication Peripherals: 1-SPI, 1-I2C
- Capture/Compare/PWM Peripherals: 1 Input Capture, 1 CCP, 6PWM
- Timers: 1 x 8-bit, 1 x 16-bit
- Number of Comparators: 1
- Temperature Range (°C) : -40 to 125
- Operating Voltage Range (V): 1.8 to 5.5
- Pin Count: 20
- Low Power: Yes
