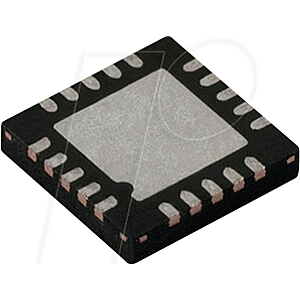

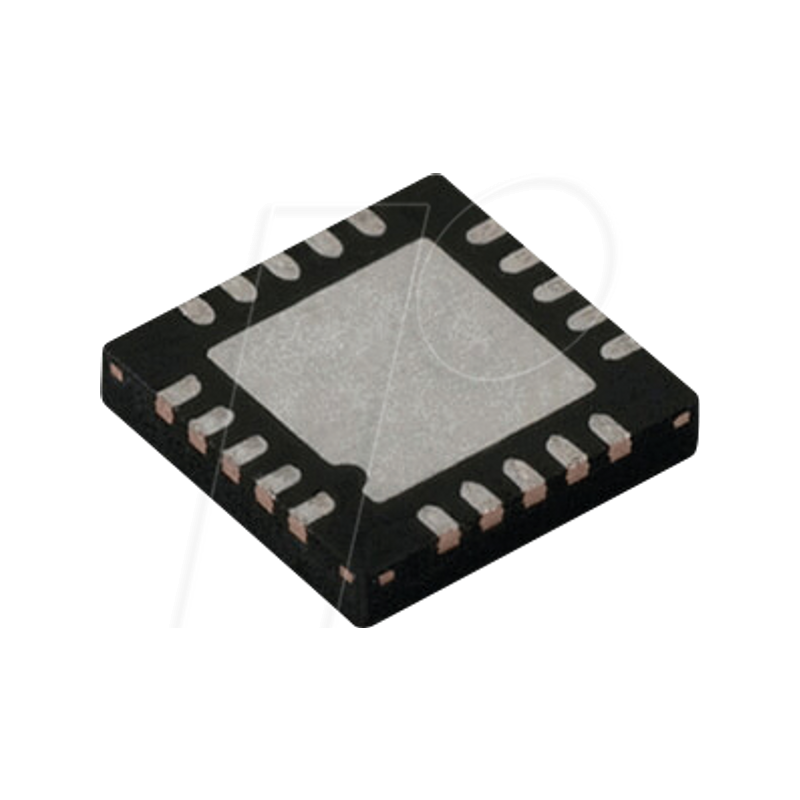

8-bit ATtiny AVR-RISC microcontroller, 2 KB, 20 MHz, WQFN-20

ATTINY2313A, MCU, 8BIT, 20MHZ,
Description:
The high-performance Microchip picoPower AVR RISC-based CMOS 8-bit microcontroller combines 2KB flash memory, 128B EEPROM, 128B SRAM, 18 multi-purpose I/O lines, 32 multi-purpose work registers, A single-wire interface for on-chip debugging, two flexible timers/counters with comparison modes, internal and external interrupts, serial programmable USART, a universal serial interface (USI) with start condition detector, programmable watchdog timer with internal oscillator, and three software-selectable power save modes. The device operates between 1.8 and 5.5 volts.
By executing powerful commands in a single clock cycle, the device achieves throughputs of nearly 1 MIPS per MHz, balancing power consumption and processing speed.

Features:
• Program memory type Flash
• Program memory size (KB) : 2
• CPU SPEED (MIPS/DMIPS) : 20
• SRAM (B) : 128
• EEPROM/HEF data (bytes) : 128
• Digital Communications Peripherals : 1-UART, 2-SPI, 1-I2C
• Capture/compare/PWM peripherals : 1 input capture, 1 CCP, 4PWM
• Timer : 1 x 8-bit, 1 x 16-bit
• Number of comparators : 1
• Temperature range (°C) : -40 to 85
• Operating voltage range (V): 1.8 to 5.5
• PIN number : 20
• Advanced RISC architecture
- 120 powerful instructions - Most one-stroke cycle versions
- 32 x 8 labor registers for general purposes
- Fully static operation
- Up to 20 MIPS throughput at 20 MHz
