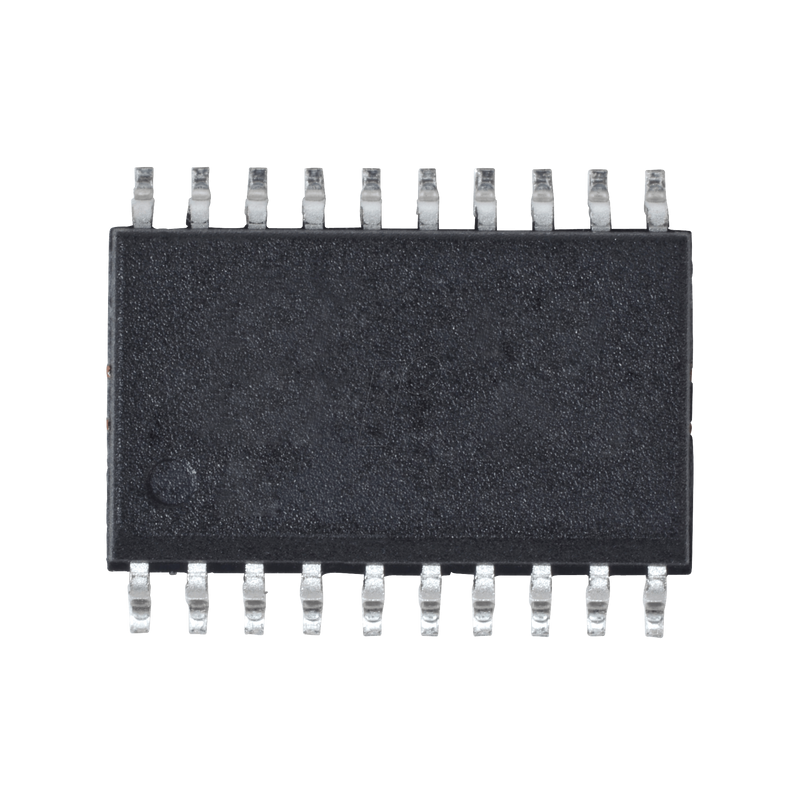

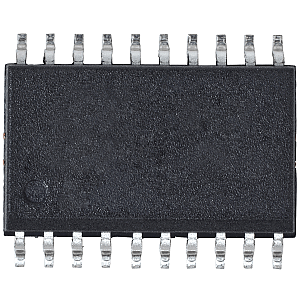

8-bit ATtiny AVR-RISC microcontroller, 32 kB, 20 MHz, SOIC-20

ATTINY3216-SSN

Description:
The ATtiny32616 microcontroller featuring the 8-bit AVR® processor with a hardware multiplier, running at up to 20 MHz and with 32 kB Flash, 2 kB SRAM, and 128B of EEPROM in a 20-pin package. The series uses the latest Core Independent Peripherals with low-power features, including an Event System, intelligent analog and advanced peripherals. Capacitive touch interfaces with proximity sensing and driven shield are supported by the integrated QTouch® peripheral touch controller.

Features:
- Hardware multiplier
- Three sleep modes:
- Idle
- Standby
- Power Down
- Event System
- Watchdog Timer (WDT)
- Power-On Reset (POR)
- Brown-Out Detection (BOD)
- Single pin programming and debugging interface (UPDI)
- 12 Channel 10-bit ADC with Voltage Reference
- 8-bit Digital to Analog Converter (DAC)
- Comparators
- Configurable Custom Logic (CCL)
- 1x 12-bit Timers (TCD)
- 2x 16-bit Timer (TCA / TCB)
- Cyclical Redundancy Check (CRC/SCAN)
- Peripheral Touch Controller (PTC)
- 12 channels self-capacitance
- 36 channels mutual-capacitance
- SPI / I2C / USART
