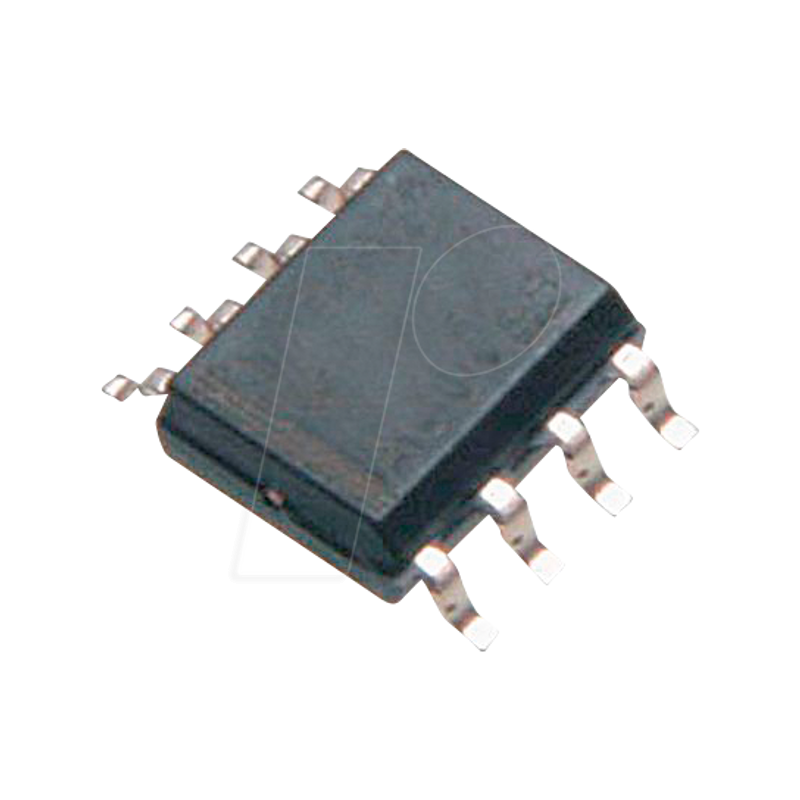

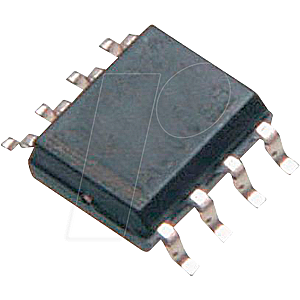

8-bit ATtiny AVR-RISC microcontroller, 4 KB, 20 MHz, SOIC-8

ATTINY212-SSN

Description:
The ATtiny412 is a microcontroller using the 8-bit AVR® processor with a hardware multiplier, running up to 20 MHz and 4 KB Flash, 256B SRAM, and 128 bytes of EEPROM in an 8-pin package. The series uses the latest technologies from Microchip with a flexible and low-power architecture, including Event System and SleepWalking, accurate analog features and advanced peripherals.

Features:
- 135 instructions
- Hardware multiplier
- Ultra Low Power (ULP)
- Idle
- Standby
- Power Down
- 6 Channels Event System
- Configurable Custom Logic (CCL)
- 6 Channel 10-bit ADC with Voltage Reference
- 8-bit Digital to Analog Converter (DAC)
- Comparators
- 1x 12-bit Timers (TCD)
- 2x 16-bit Timer (TCA / TCB)
- Cyclical Redundancy Check (CRC/SCAN)
- Watchdog Timer (WDT)
- Power-On Reset (POR)
- Brown-Out Detection (BOD)
- Single pin programming and debugging interface (UPDI)
- Operation Voltage: 1.8V - 5.5V
