ATTINY412-SSN
Description:
The ATtiny412 is a microcontroller that uses the 8-bit AVR® processor with a hardware multiplier and operates at up to 20 MHz, 4 KB Flash, 256B SRAM and 128 bytes EEPROM in an 8-pin housing. The series leverages Microchip's latest technologies with a flexible and power-saving architecture, including Event System and SleepWalking, precision analogue features and advanced peripherals.
Features:
• 135 commands
• Hardware multiplier
• Ultra-low power consumption (ULP)
• Idle
• Standby
• Switch off
• 6-channel Event System
• Configurable custom logic (CCL)
• 6-channel 10-bit ADC with voltage reference
• 8-bit digital-to-analogue converter (DAC)
• Comparators
• 1x 12-bit timer (TCD)
• 2x 16-bit timer (TCA/TCB)
• Cyclic redundancy check (CRC/SCAN)
• Watchdog timer (WDT)
• Power-on reset (POR)
• Brown-out detection (BOD)
• Single-pin programming and debugging interface (UPDI)
• Operating voltage: 1.8 V - 5.5 V
In stock
SKU ATTINY412-SSNR

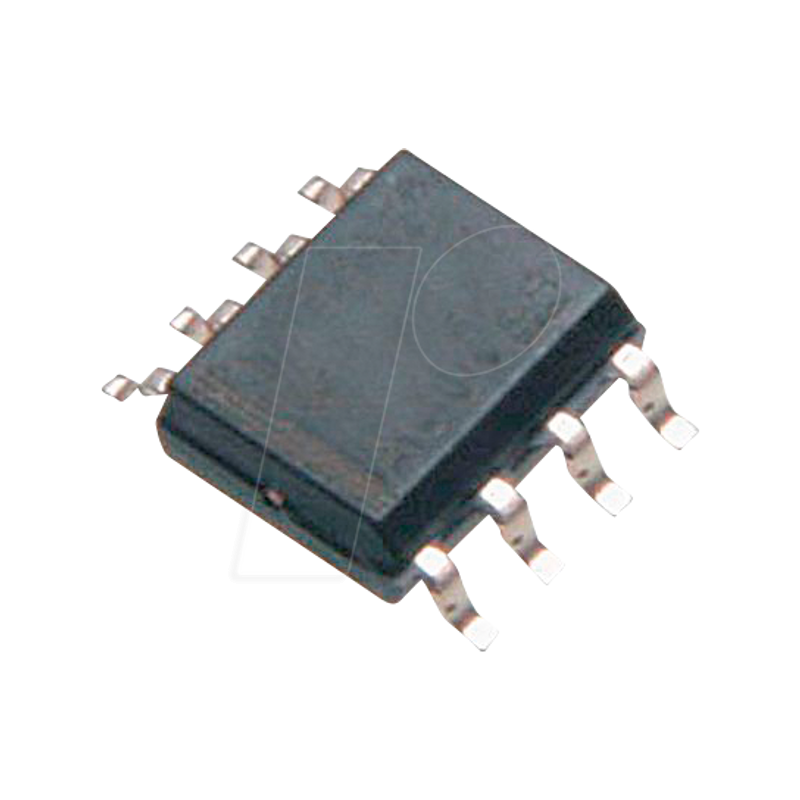

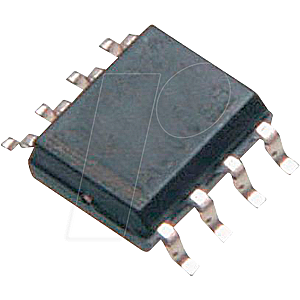

8-bit ATtiny AVR-RISC microcontroller, 4 KB, 20 MHz, SOIC-8
MPN ATTINY412-SSNR
Manufacturer MICROCHIP
€1.09
incl. 19% VAT · €0.92 excl. VAT
Package
SOIC-8
Specifications
General
Type
8-bit microcontroller
Technology
AVR® RISC
Model
ATTINY41
Design
WDT, EVSYS, CCL, DAC
Mounting form
SOIC-8
Specials
CPU clock
20 MHz
Implementation
Memory
4
RAM
0.256 kByte
EEPROM
128 Byte
I/O-Pins
6
12-bit Timer
1
16-bit Timer
2
Analog comparator
1
Interfaces
I²C
1
SPI
1
ODC
6
DAC
1
I/O/USART
1
Electrical values
Supply voltage
+1.8 ... +5.5 VDC
Other
Temperature range
-40 ... +85
Packaging
Packaging
Tape+Reel
Manufacturer specifications
Manufacturer
MICROCHIP
Manufacturer ID
ATTINY412-SSNR
Weight
0.001 kg
RoHS
conform
EAN/GTIN
9900003670563
HS-Code
85423190
