The powerful microchip picoPower® 8-bit AVR® RISC-based microcontroller combines 8 KB ISP flash memory, 512 B EEPROM, 512 B SRAM, 12 general purpose I/O lines, 32 general purpose work registers, 1 8-bit timer/counter with 2 PWM channels, 2 16-bit timers/counters with 2 PWM channels, internal and external interrupts, 1 12-channel 10-bit A/D converter, 2 on-chip analogue comparators, 2 full-duplex USARTs with start-frame wake-up from idle status, serial host/client SPI interface, serial client I2C interface, programmable gain stage (12x, 20x and 100x) for 12 differential ADC channel pairs, programmable watchdog timer with internal oscillator, internally calibrated oscillator and 4 software-selectable power-saving modes. The device operates between 1.7 and 5.5 V.
In stock
SKU ATTINY841-SSU

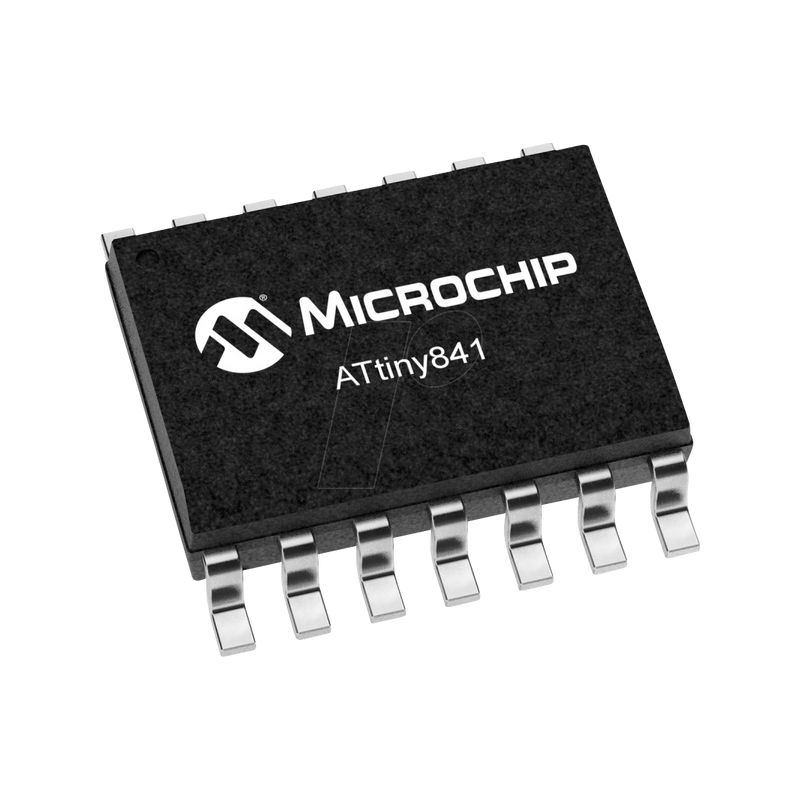

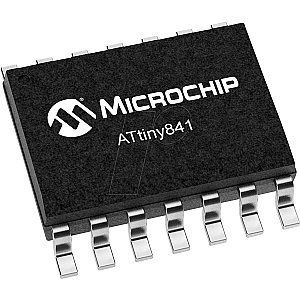

8-bit ATtiny AVR-RISC microcontroller, 8 kB, 16 MHz, SO-14
MPN ATTINY841-SSU
Manufacturer MICROCHIP
€2.19
incl. 19% VAT · €1.84 excl. VAT
Package
SOIC-14
Specifications
General
Type
8-bit microcontroller
Technology
AVR® RISC
Model
ATtiny841
Design
Watchdog
Mounting form
SOIC-14
Specials
CPU clock
16 MHz
Implementation
Memory
8
RAM
0.512 kByte
EEPROM
512 Byte
I/O-Pins
12
8-bit Timer
1
16-bit Timer
2
PWM
2
Analog comparator
2
Interfaces
I²C
1
SPI
1
ODC
12
I/O/USART
2
Electrical values
Supply voltage
+1.7 ... +5.5 VDC
Other
Temperature range
-40 ... +85
Manufacturer specifications
Manufacturer
MICROCHIP
Manufacturer ID
ATTINY841-SSU
Weight
1.0E-4 kg
RoHS
conform
EAN/GTIN
9900003297333
HS-Code
85423190
