The ATTINY84A-PU is a powerful AVR-RISC based 8-bit microcontroller with picoPower® technology. The device combines a 512B EEPROM, 12x universal I/O lines, 32x universal working registers, 2x timer/counter (8 bit/16 bit) with 2xi PWM channels each, internal and external interrupts, a 10-bit A/D converter with 8 channels, a programmable gain stage (1x, 20x) for 12 differential ADC channel pairs, 1x programmable watchdog timer with internal oscillator, 1x internal calibrated oscillator and 4x software selectable power saving modes This microcontroller achieves nearly 1MIPS per MHz performance by executing powerful instructions in a single clock cycle, optimally balancing power consumption and processor speed.
In stock
SKU ATTINY 84A-PU

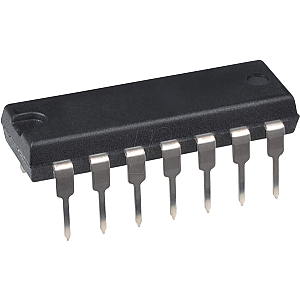

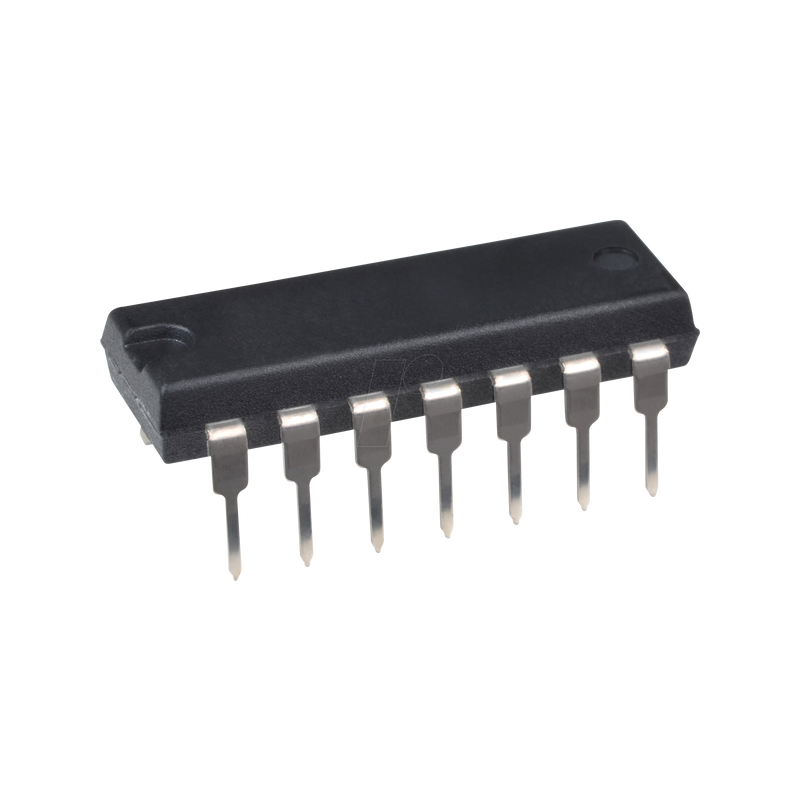

8-bit ATtiny AVR RISC microcontroller, 8 KB, 20 MHz, DIP-14
MPN ATTINY84A-PU
Manufacturer MICROCHIP
€3.01
incl. 19% VAT · €2.53 excl. VAT
Package
PDIP-14
Specifications
General
Type
8-bit microcontroller
Technology
AVR RISC architecture
Model
ATtiny84A
Design
Watchdog
Mounting form
PDIP-14
Specials
CPU clock
20 MHz
Implementation
Memory
8
RAM
0.512 kByte
EEPROM
512 Byte
I/O-Pins
12
8-bit Timer
1
16-bit Timer
1
PWM
1
Analog comparator
1
Interfaces
I²C
1
SPI
1
ODC
8
Electrical values
Supply voltage
+1.8 ... +5.5 VDC
Other
Temperature range
-40 ... +85
Manufacturer specifications
Manufacturer
MICROCHIP
Manufacturer ID
ATTINY84A-PU
Weight
0.001 kg
RoHS
conform
EAN/GTIN
9900001610516
HS-Code
85423190
