High-performance CMOS 8-bit microcontroller with low power consumption and 2 KB ISP flash memory. The device uses Microchip's high-density non-volatile memory technology and is compatible with the industry-standard MCS-51 instruction set.
An improved CPU core can fetch a single byte from memory in each clock cycle and achieves a throughput of 20 MIPS. The new CPU core runs at a much lower speed, which significantly reduces power consumption.
Two new modes have been added to the two timer/counters in the AT89LP213/214. Mode 0 can be configured as a variable 9- to 16-bit timer/counter and mode 1 as a 16-bit
timer/counter with automatic reload. In addition, the timer/counters of the AT89LP213 can independently drive a pulse width modulation output.
In stock
SKU AT89LP214-20XU

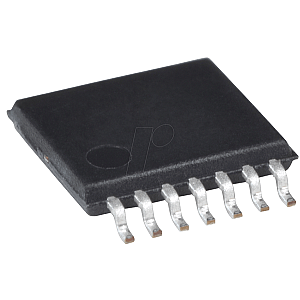

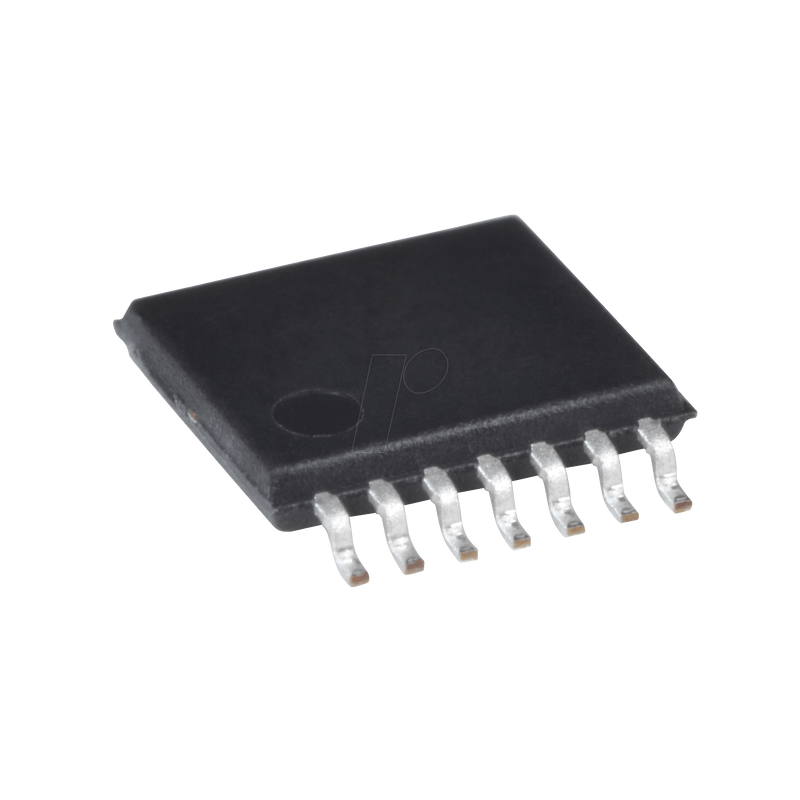

8-bit MCS-8051 microcontroller, 2 KB, 20 MHz, TSSOP-14
MPN AT89LP214-20XU
Manufacturer MICROCHIP
€3.49
incl. 19% VAT · €2.93 excl. VAT
Package
TSSOP-14
Specifications
General
Type
8-bit microcontroller
Technology
MCS-8051 architecture
Model
AT89LP214
Design
SingleCycle
Mounting form
TSSOP-14
Specials
CPU clock
20 MHz
Implementation
Memory
2
RAM
0.128 kByte
I/O-Pins
12
PWM
8-bit
Interfaces
SPI
1
ODC
-
UART
1
Electrical values
Supply voltage
2.4..5 VDC
Other
Temperature range
-40 ... +85
Manufacturer specifications
Manufacturer
MICROCHIP
Manufacturer ID
AT89LP214-20XU
Weight
0.05 kg
RoHS
conform
EAN/GTIN
9900003541337
HS-Code
85423190
