AT80C51RD2 microcontrollers are high-performance versions of the 80C51 8-bit microcontrollers. They retain all functions of the Atmel 80C52 - with 256 bytes of internal RAM, an interrupt controller with 7 sources and 4 levels and three timers/counters.
The microcontrollers also feature a programmable counter array, 1024-byte XRAM, a hardware watchdog timer, keyboard interface, a more versatile serial channel that facilitates multiprocessor communication (EUART) and a speed-improvement mechanism (X2 mode). The microcontrollers are equipped with two software-selectable modes for reduced activity as well as an 8-bit clock prescaler to further reduce power consumption.
In idle mode, the CPU is frozen while the peripherals and interrupt system are still in operation. In power-down mode, the RAM is saved and all other functions are disabled.

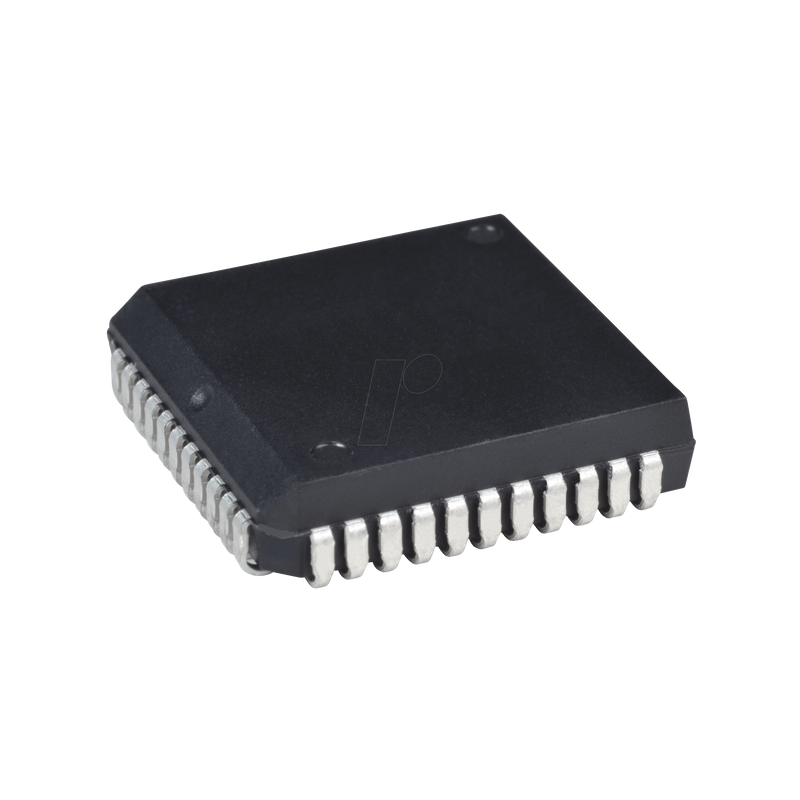

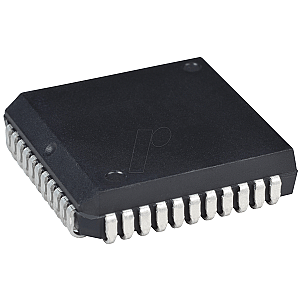

8-bit MCS-8051 microcontroller, ROMless, 40 MHz, PLCC-44
€6.72AT80C51RD2-SLSUM
Technical information
| General | |
|---|---|
| Type | 8-bit microcontroller |
| Technology | MCS-8051 architecture |
| Model | Microcontroller |
| Design | ROMless |
| Mounting form | PLCC-44 |
| Specials | |
| CPU clock | 40 MHz |
| Implementation | |
| RAM | 1.25 kByte |
| I/O-Pins | 32 |
| Interfaces | |
| SPI | 1 |
| UART | 1 |
| Electrical values | |
| Supply voltage | +2.7 ... +5.5 VDC |
| Other | |
| Temperature range | -40 ... +85 |
| Manufacturer specifications | |
| Manufacturer | MICROCHIP |
| Manufacturer ID | AT80C51RD2-SLSUM |
| Weight | 0.001 kg |
| RoHS | conform |
| EAN/GTIN | 9900002640451 |
| HS-Code | 85423190 |
