28KB, 2KB RAM, 256B EEPROM, 10B ADC, COMPARATOR, 5b DAC, 10b PWM, CCP, CLC, NCO,
PIC16(L)F18326/18346
Full-Featured, 14/20 Low Pin Count Microcontrollers with XLP
The PIC16F18346 microcontrollers feature analog, core-independent peripherals and communication peripherals combined with Extreme Low Power (XLP) for a wide range of general purpose and low-current applications. Peripheral Pin Select (PPS) functionality allows pin mapping when using digital peripherals (CLC, CWG, CCP, PWM, and communications) to increase application design flexibility.
In stock
SKU PIC16F18346-I/SO

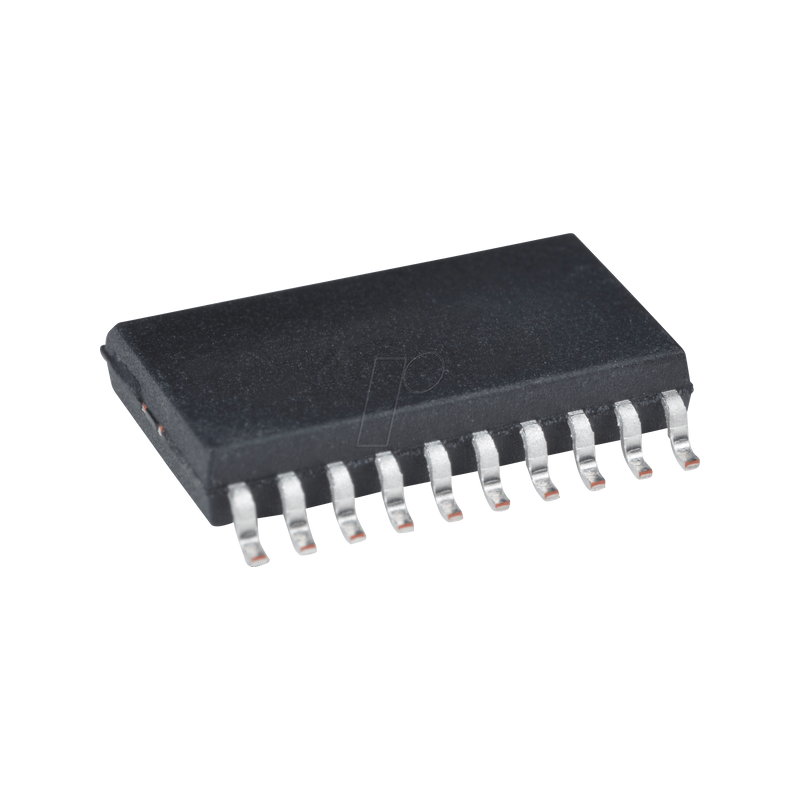

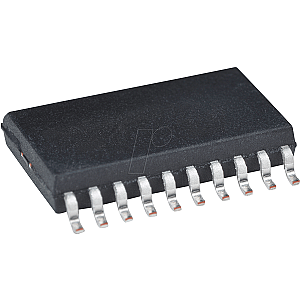

8-bit PIC microcontroller, 28 KB, 32 MHz, 2.3 - 5.5 V, SO-20
MPN PIC16F18346-I/SO
Manufacturer MICROCHIP
€2.52
incl. 19% VAT · €2.12 excl. VAT
Package
SO-20
Specifications
General
Type
PIC Controller
Technology
PIC® Flash
Model
PIC16F18346
Design
10b ADC, Comparator, 5b DAC, 10b PWM, CCP, CLC, NC
Mounting form
SO-20
Specials
CPU clock
32 MHz
Implementation
Memory
28
RAM
2 kByte
EEPROM
256 Byte
I/O-Pins
18
8-bit Timer
4
16-bit Timer
3
Internal oscillator
32 MHz, 31 kHz
Analog comparator
2
Interfaces
I²C
2
SPI
2
ODC
17 ch, 10-bit
UART
1
Electrical values
Supply voltage
1.8..5.5 VDC
Other
Temperature range
-40 ... +85
Manufacturer specifications
Manufacturer
MICROCHIP
Manufacturer ID
PIC16F18346-I/SO
Weight
0.001 kg
RoHS
conform
EAN/GTIN
9900003542464
HS-Code
85423190
