7 KB, 512 B RAM, 256 B EEPROM, 10b ADC, Comp, 5b DAC, 10b PWM, CCP, CLC, NCO, CWG
PIC16(L)F18324/18344 microcontrollers feature analogue, core-independent peripherals and communication peripherals combined with eXtreme Low Power (XLP) for a wide range of general purpose and low power applications.
The Peripheral Pin Select (PPS) functionality allows pin assignment when using digital peripherals (CLC, CWG, CCP, PWM and communication) to increase application design flexibility.
In stock
SKU PIC16F18324-I/ST

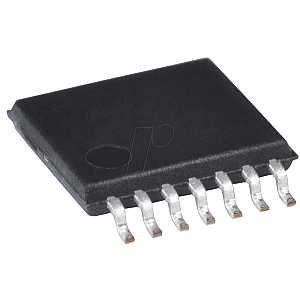

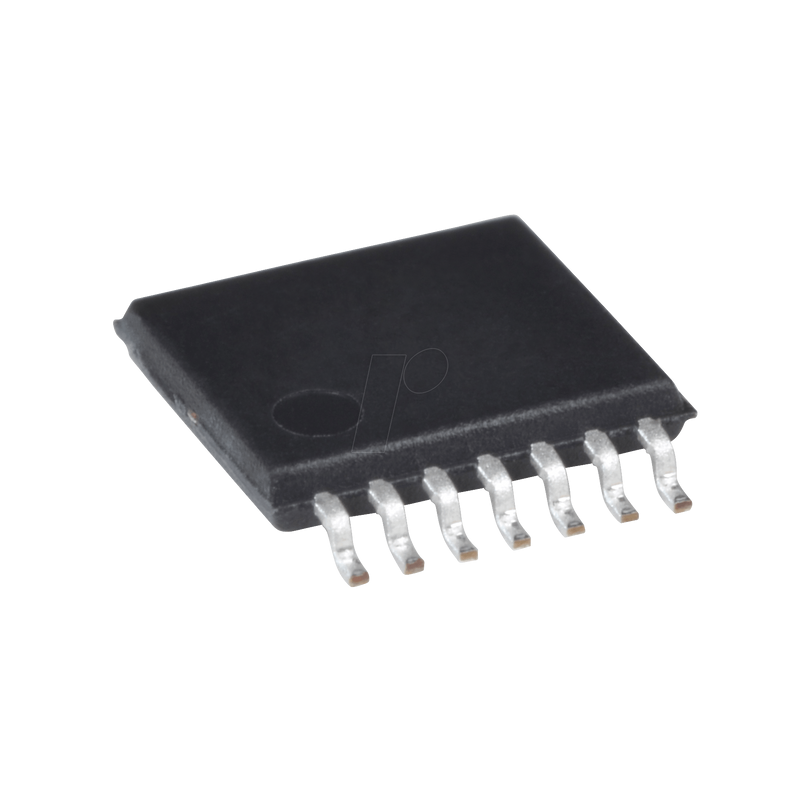

8-bit PIC microcontroller, 7 KB, 32 MHz, TSSOP-14
MPN PIC16F18324-I/ST
Manufacturer MICROCHIP
€2.67
incl. 19% VAT · €2.24 excl. VAT
Package
TSSOP-14
Specifications
General
Type
8-Bit Mikrocontroller
Technology
PIC® Flash
Model
PIC16F18324
Design
Full-Featured
Mounting form
TSSOP-14
Specials
CPU clock
32 MHz
Implementation
Memory
7
RAM
0.512 kByte
EEPROM
256 Byte
I/O-Pins
12
8-bit Timer
4
16-bit Timer
3
PWM
2x10-Bit
Internal oscillator
32 MHz, 31 kHz
Analog comparator
2
Interfaces
I²C
1
SPI
1
ODC
11x10-Bit
DAC
1x5-Bit
Electrical values
Supply voltage
2.3..5.5 VDC
Supply Voltage Min.
2.3 V
Supply Voltage Max.
5.5 V
Other
Temperature range
-40 ... +85
Manufacturer specifications
Manufacturer
MICROCHIP
Manufacturer ID
PIC16F18324-I/ST
Weight
0.001 kg
RoHS
conform
EAN/GTIN
9900004064910
HS-Code
85423190
