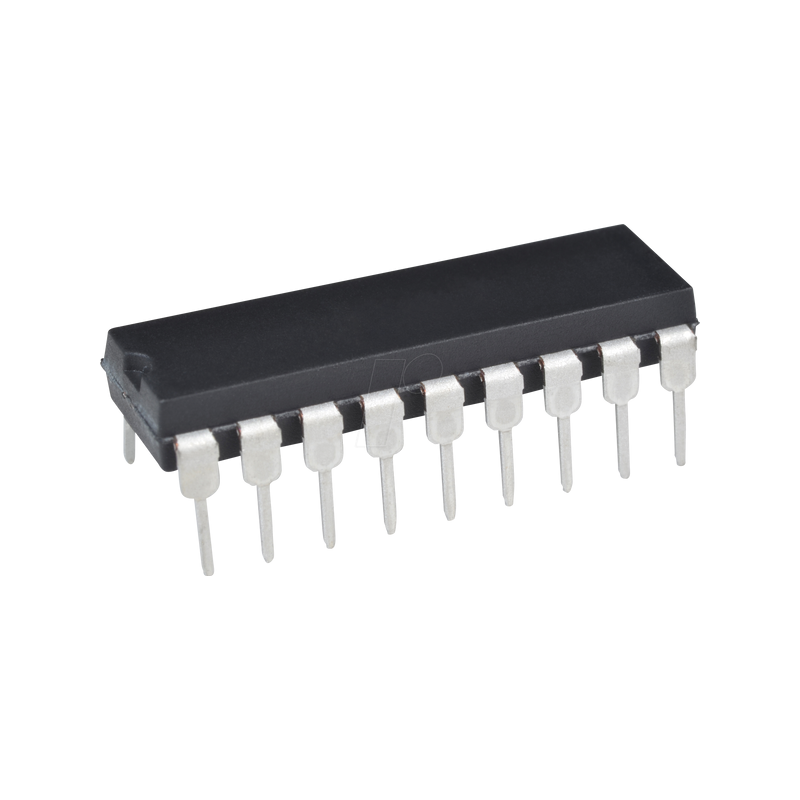

8-bit PICmicro microcontroller, 0.768 KB, 20 MHz, DIP-18

PIC16F54

Description
This powerful (200 nanosecond instruction execution) yet easy-to-program (only 33 single-word instructions) FLASH-based 8-bit microcontroller packs Microchip’s powerful PICmicro® architecture into an 18-pin package. Easily adapted for automotive, industrial, appliances and consumer entry-level product applications.

Features
- 18-pin packaging
- Baseline Core with 33 Instructions, 2 Stack Levels
- All single-cycle Instructions except for program branches which are two cycles
- 12-bit wide instructions
- 8-bit wide data path
- 25 mA source/sink current I/O
- Low power (100nA) sleep current
- One 8-bit timer (TMR0)
- Watchdog timer (WDT)
- In-Circuit Serial Programming™
- In-Circuit debugging support
- Programmable code protection

Parameter:
- Program Memory Type: Flash
- Program Memory Size (KB): 0.75
- CPU Speed (MIPS/DMIPS): 5
- SRAM (B): 25
- Timers: 1 x 8-bit
- Temperature Range (°C): -40 to 85
- Operating Voltage Range (V): 2 to 5.5
